RP17-13PA-12PC(71)

Teknik Özellikler

Özellikler

Backshell, Cable Clamp

Shielding

Unshielded

Body Depth

1.417 inch

Contact Finish Mating

TIN

RoHS Durumu

RoHS Compliant

Polarization Key

POLARIZED HOUSING

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mil Conformance

NO

Total Number Of Contacts

12

Contact Plating

Silver

HTS Kodu

8536.69.40.20

Wire Gauge Min

22 AWG

Contact Type

Crimp

Dielectric Withstanding Voltage

1000VAC V

JESD-609 Kodu

e3

Durability

1000 Cycles

Orientation

Keyed

Akım Değeri

2A

Reliability

COMMERCIAL

Insert Material

Polycarbonate (PC)

Radyasyon Dayanımı

No

Fabrika Tedarik Süresi

10 Weeks

Shell Size Insert

13

Parça Durumu

Active

Wire Gauge Max

18 AWG

ECCN Kodu

EAR99

Shell Material

Polycarbonate (PC)

Insulation Resistance

1000000000Ohm

Filter Feature

NO

Montaj Tipi

Free Hanging (In-Line)

Empty Shell

NO

Contact Materials

Bronze

Uzunluk

46mm

Montaj

Free Hanging

Kurşunsuz

Lead Free

Rated Current Signal

2A

Din Conformance

NO

Includes

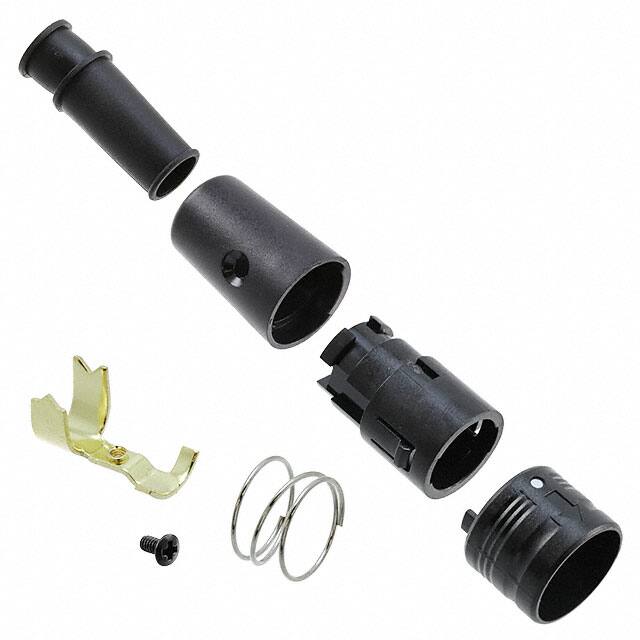

6 pcs - 1 Connector, 1 Backshell, 1 Clamp, 1 Screw, 1 Spring, 1 Strain Relief

Contact Gender

Male

Mating Information

MULTIPLE MATING PARTS AVAILABLE
