RP13A-12PK-20SC(71)

Teknik Özellikler

Note

Contacts Not Included

Housing Color

Black

Ambalaj

Bulk

Material Flammability Rating

UL94 V-0

Contact Resistance

30mOhm

Yayın Yılı

2004

Çalışma Sıcaklığı

-10°C~60°C

REACH Uyumluluk Kodu

unknown

Tip

For Female Sockets

Reference Standard

UL

Connector Type

Plug Housing

Pozisyon Sayısı

20

Kurşunsuz Kodu

yes

Seri

RP13A

Contact Shape

Circular

Includes

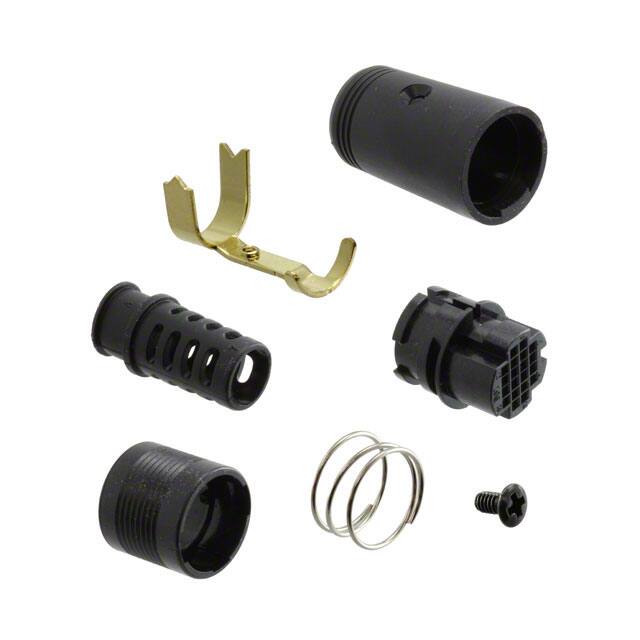

6 pcs - 1 Connector, 1 Backshell, 1 Cable Clamp, 1 Screw, 1 Spring, 1 Strain Relief

Contact Gender

Female

Number Of Ports

1

Fastening Type

Push-Pull

Contact Materials

Bronze

Montaj

Free Hanging

Insulation Materials

Plastic

Rated Current Signal

2A

Din Conformance

YES

Kurşunsuz

Lead Free

Fabrika Tedarik Süresi

10 Weeks

Contact Sizes

1.2mm

Shell Material

Polycarbonate (PC)

Insulation Resistance

1000000000Ohm

Montaj Tipi

Free Hanging (In-Line)

Shell Size Insert

12

Parça Durumu

Active

Wire Gauge Max

24 AWG

Reliability

COMMERCIAL

Dielectric Withstanding Voltage

300VAC V

Contact Type

Crimp

Orientation

Keyed

Akım Değeri

2A

Insert Material

Polycarbonate (PC)

Nem Hassasiyeti (MSL)

1 (Unlimited)
