RP13A-12PK-13SC(71)

Teknik Özellikler

Contact Sizes

1.2mm 11 1.6mm 2

Note

Contacts Not Included

Fabrika Tedarik Süresi

10 Weeks

Housing Color

Black

Shell Size Insert

12

Çalışma Sıcaklığı

-10°C~60°C

Yayın Yılı

2009

Parça Durumu

Active

Tip

For Female Sockets

ECCN Kodu

EAR99

Shell Material

Polycarbonate (PC)

Ambalaj

Bulk

Montaj Tipi

Free Hanging (In-Line)

Material Flammability Rating

UL94 V-0

Contact Type

Crimp

Orientation

Keyed

Akım Değeri

2A

Terminal

Solder

Pozisyon Sayısı

13

Contact Shape

Circular

Seri

RP13A

Insert Material

Polycarbonate (PC)

Radyasyon Dayanımı

No

Connector Type

Plug Housing

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Gender

Female

Contact Plating

Silver

Includes

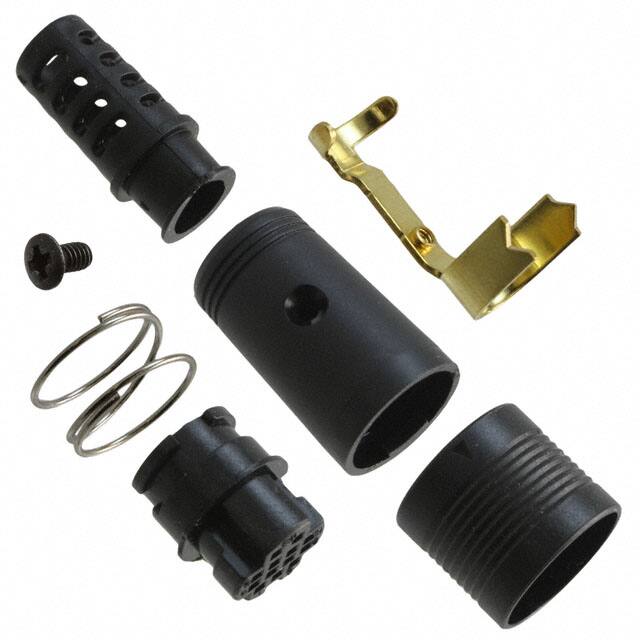

6 pcs - 1 Connector, 1 Backshell, 1 Cable Clamp, 1 Screw, 1 Spring, 1 Strain Relief

HTS Kodu

8536.69.40.20

Fastening Type

Push-Pull

Max Current Rating

2A

Özellikler

Backshell, Cable Clamp, Strain Relief

Shielding

Unshielded

Insulation Materials

Plastic

Contact Materials

Bronze

Montaj

Free Hanging

Uzunluk

52.2mm

Wirecable Gauge

24 AWG

Kurşunsuz

Lead Free

Nominal Gerilim

100V
