RP13A-12PG-20SC(71)

Teknik Özellikler

Reference Standard

UL

Contact Shape

Circular

Kurşunsuz Kodu

yes

Seri

RP13A

Pozisyon Sayısı

20

Connector Type

Plug Housing

Housing Color

Black

Note

Contacts Not Included

Tip

For Female Sockets

REACH Uyumluluk Kodu

unknown

Çalışma Sıcaklığı

-10°C~60°C

Yayın Yılı

2009

Material Flammability Rating

UL94 V-0

Contact Resistance

30mOhm

Ambalaj

Bulk

Insulation Materials

Plastic

Montaj

Free Hanging

Contact Materials

Bronze

Kurşunsuz

Lead Free

Din Conformance

YES

Rated Current Signal

2A

Contact Gender

Female

Includes

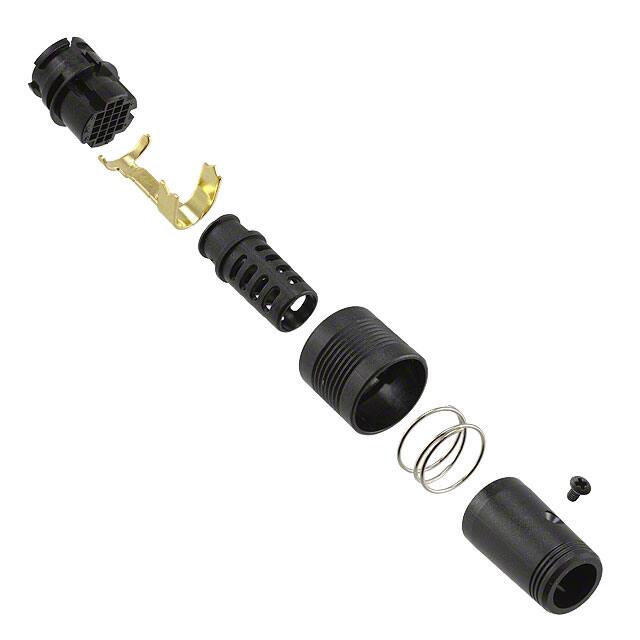

6 pcs - 1 Connector, 1 Backshell, 1 Cable Clamp, 1 Screw, 1 Spring, 1 Strain Relief

Fastening Type

Push-Pull

Number Of Ports

1

Orientation

Keyed

Akım Değeri

2A

Dielectric Withstanding Voltage

300VAC V

Contact Type

Crimp

Reliability

COMMERCIAL

Insert Material

Polycarbonate (PC)

Contact Sizes

1.2mm

Fabrika Tedarik Süresi

10 Weeks

Parça Durumu

Active

Shell Size Insert

12

Montaj Tipi

Free Hanging (In-Line)

Insulation Resistance

1000000000Ohm

ECCN Kodu

EAR99

Shell Material

Polycarbonate (PC)

Body Depth

1.456 inch
