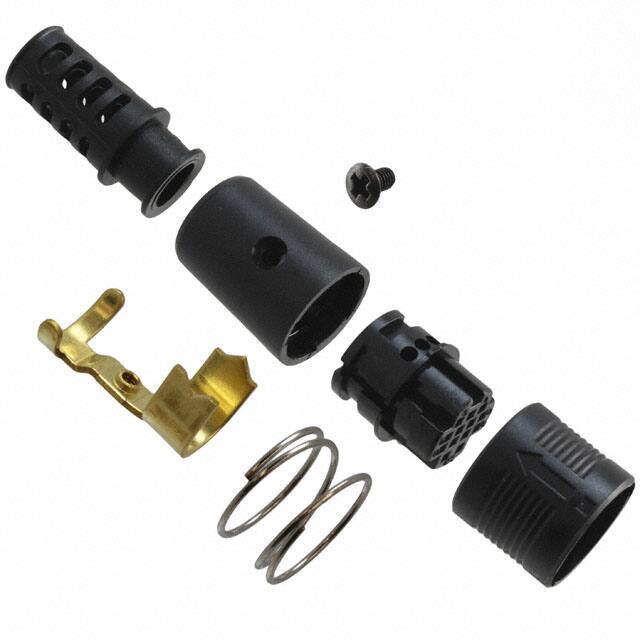

RP13A-12PE-13SC(71)

Teknik Özellikler

Contact Gender

Female

Contact Plating

Silver

Total Number Of Contacts

13

Includes

6 pcs - 1 Connector, 1 Backshell, 1 Cable Clamp, 1 Screw, 1 Spring, 1 Strain Relief

Nem Hassasiyeti (MSL)

1 (Unlimited)

Fastening Type

Push-Pull

Number Of Ports

1

Body Depth

1.26 inch

Contact Finish Mating

AG

Shielding

Unshielded

Insulation Materials

Plastic

Özellikler

Backshell, Cable Clamp, Strain Relief

Montaj

Free Hanging

Wirecable Gauge

24 AWG

Contact Materials

Bronze

Kurşunsuz

Lead Free

Nominal Gerilim

100V

Din Conformance

YES

Rated Current Signal

2A

RoHS Durumu

RoHS Compliant

Contact Sizes

1.2mm 11 1.6mm 2

Housing Color

Black

Note

Contacts Not Included

Fabrika Tedarik Süresi

10 Weeks

Parça Durumu

Active

Tip

For Female Sockets

REACH Uyumluluk Kodu

unknown

Shell Size Insert

12

Çalışma Sıcaklığı

-10°C~60°C

Yayın Yılı

2009

Montaj Tipi

Free Hanging (In-Line)

Contact Resistance

15mOhm

Material Flammability Rating

UL94 V-0

Insulation Resistance

1000000000Ohm

Shell Material

Polycarbonate (PC)

Ambalaj

Bulk

Akım Değeri

2A

Orientation

Keyed

Contact Type

Crimp

Dielectric Withstanding Voltage

300VAC V
