RP13A-12PA-13PC(71)

Teknik Özellikler

Contact Sizes

1.2mm 11 1.6mm 2

Shielding

Shielded

Fastening Type

Push-Pull

Contact Finish Mating

AG

Insulation Resistance

1000000000Ohm

Din Conformance

YES

Material Flammability Rating

UL94 V-0

Tip

For Male Pins

Çalışma Sıcaklığı

-10°C~60°C

Shell Size Insert

12

Reference Standard

UL

Montaj

Free Hanging

Rated Current Signal

2A

Parça Durumu

Active

Total Number Of Contacts

13

Number Of Ports

1

Includes

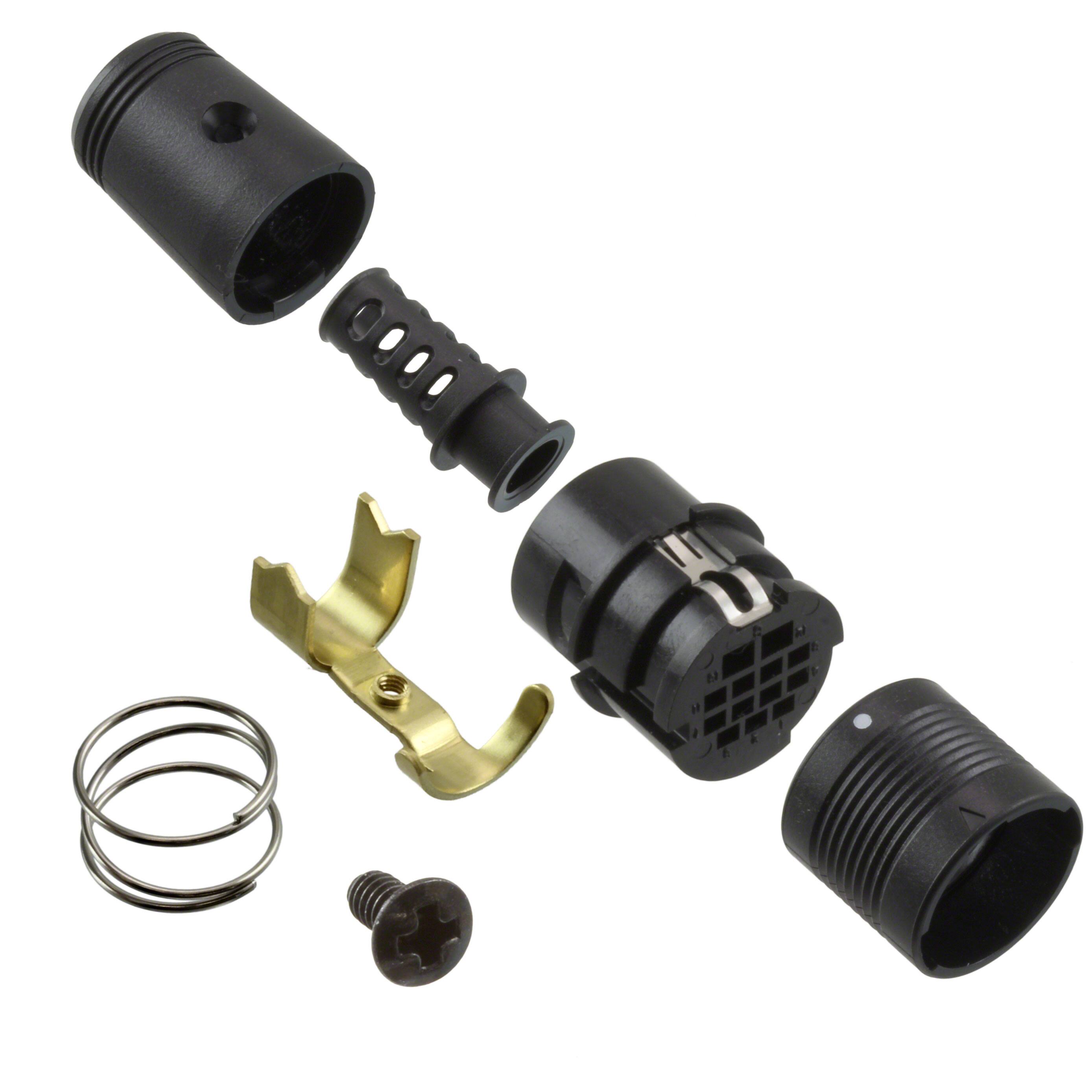

6 pcs - 1 Connector, 1 Backshell, 1 Cable Clamp, 1 Screw, 1 Spring, 1 Strain Relief

Contact Plating

Silver

Max Current Rating

2A

Insert Material

Polycarbonate (PC)

Montaj Tipi

Free Hanging (In-Line)

Connector Type

Plug Housing

Shell Material

Polycarbonate (PC)

Orientation

Keyed

Housing Color

Black

Kurşunsuz

Lead Free

Radyasyon Dayanımı

No

Pozisyon Sayısı

13

RoHS Durumu

RoHS Compliant

Contact Resistance

15mOhm

Yayın Yılı

2009

Özellikler

Backshell, Cable Clamp, Electrostatic Shield, Strain Relief

Dielectric Withstanding Voltage

300VAC V

Contact Type

Crimp

Seri

RP13A

Contact Materials

Bronze

Contact Gender

Male

Body Depth

1.26 inch

Ambalaj

Bulk

Nem Hassasiyeti (MSL)

1 (Unlimited)
