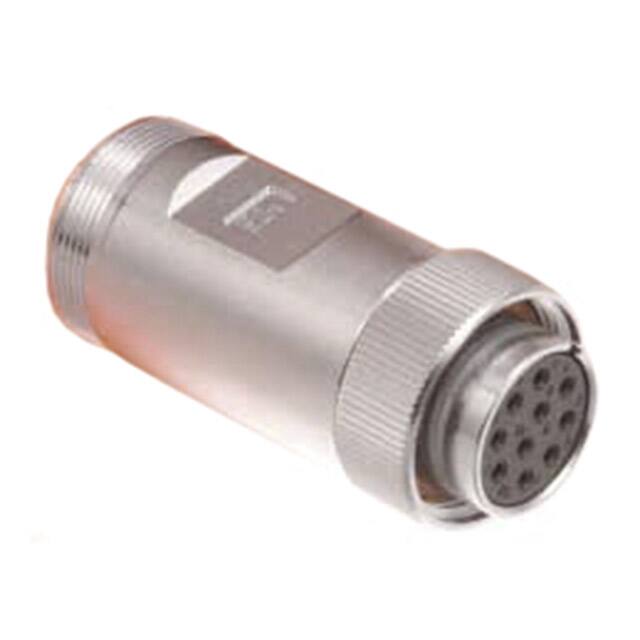

RM15WTPZA-10S(71)

Teknik Özellikler

Contact Finish Thickness Mating

196.9μin 5.00μm

Ratings

Dust Tight, IP67, Waterproof

Mixed Contacts

NO

ECCN Kodu

EAR99

Terminal

Solder Cup

Filter Feature

NO

Backshell Type

SOLID

Pozisyon Sayısı

10

Montaj Tipi

Free Hanging (In-Line)

Material Flammability Rating

UL94 V-0

Montaj

Free Hanging

Kurşunsuz Kodu

yes

Shell Finish

Chrome

Mil Conformance

NO

Backshell Material Plating

Zinc Alloy, Chrome

Total Number Of Contacts

10

Fabrika Tedarik Süresi

12 Weeks

Iec Conformance

NO

Insert Material

Diallyl Phthalate (DAP)

REACH Uyumluluk Kodu

unknown

HTS Kodu

8536.69.40.20

Connector Type

Plug, Female Sockets

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Orientation

Keyed

RoHS Durumu

RoHS Compliant

Ingress Protection

IP67/68 - Dust Tight, Waterproof

Empty Shell

NO

JESD-609 Kodu

e4

Shell Material

Zinc Alloy

Akım Değeri

5A

Özellikler

Backshell, Coupling Nut

Contact Finish Mating

Silver

Contact Materials

Copper Alloy

Ambalaj

Bulk

Din Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Fastening Type

Threaded

Yayın Yılı

2006

Parça Durumu

Active

Shell Size Insert

15
