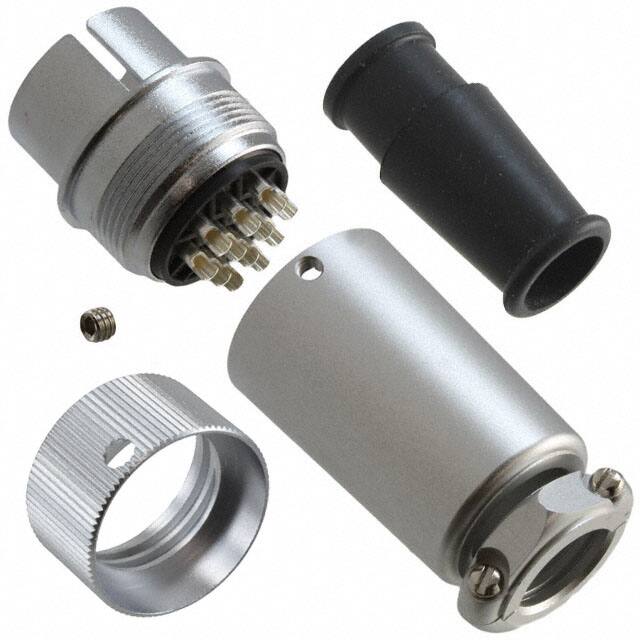

RM15TPD-12P(71)

Teknik Özellikler

Connector Type

Plug, Male Pins

Orientation

Keyed

REACH Uyumluluk Kodu

unknown

Insert Material

Diallyl Phthalate (DAP)

Voltage Rated Ac

350V

Total Number Of Contacts

12

Fabrika Tedarik Süresi

12 Weeks

Iec Conformance

NO

Cable Opening

0.386 (9.80mm)

Shell Finish

Chrome

Mil Conformance

NO

Kurşunsuz Kodu

yes

Montaj

Cable, Free Hanging

Wirecable Diameter

8 mm

Option

GENERAL PURPOSE

Reach Svhc

No SVHC

Mixed Contacts

NO

Contact Finish Thickness Mating

157.5μin 4.00μm

Contact Gender

Male

Shell Size Insert

15

Seri

RM

Fastening Type

Threaded

Nem Hassasiyeti (MSL)

1 (Unlimited)

Din Conformance

NO

Özellikler

Backshell, Cable Clamp, Coupling Nut, Strain Relief

Contact Materials

Brass

Contact Finish Mating

Silver

JESD-609 Kodu

e4

Empty Shell

NO

Shell Material

Zinc Alloy

Contact Resistance

4mOhm

Body Material

Aluminium, Brass

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Backshell Material Plating

Aluminum Alloy, Chrome

Montaj Tipi

Free Hanging (In-Line)

Material Flammability Rating

UL94 V-0

Pozisyon Sayısı

12

Backshell Type

SOLID

Filter Feature

NO

Voltage Rated Dc

490V
