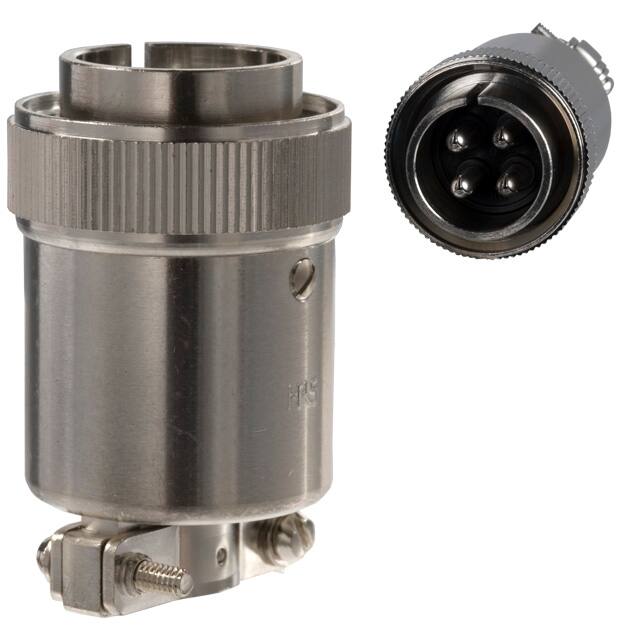

RM15TP-4PA(71)

Teknik Özellikler

Insert Material

Diallyl Phthalate (DAP)

Insulation Resistance

1000000000Ohm

Uzunluk

34mm

Connector Type

Plug, Male Pins

Orientation

Keyed

Kurşunsuz Kodu

yes

Montaj

Cable, Free Hanging

Mil Conformance

NO

Shell Finish

Nickel

Cable Opening

0.453 (11.51mm)

Iec Conformance

NO

Fabrika Tedarik Süresi

10 Weeks

Total Number Of Contacts

4

Option

GENERAL PURPOSE

Durability

2000 Cycles

Contact Finish Thickness Mating

78.7μin 2.00μm

Mixed Contacts

NO

Shell Size Insert

15

Seri

RM

Contact Gender

Male

Contact Style

RND PIN-SKT

Din Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Reliability

COMMERCIAL

Fastening Type

Threaded

Body Depth

1.339 inch

JESD-609 Kodu

e4

Empty Shell

NO

Shell Material

Brass

Özellikler

Backshell, Cable Clamp, Coupling Nut

Contact Finish Mating

Silver

Contact Materials

COPPER ALLOY

Max Current Rating

10A

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Montaj Tipi

Free Hanging (In-Line)

Material Flammability Rating

UL94 V-0

Backshell Material Plating

Brass, Nickel

Number Of Ports

1

Radyasyon Dayanımı

No

Backshell Type

SOLID
