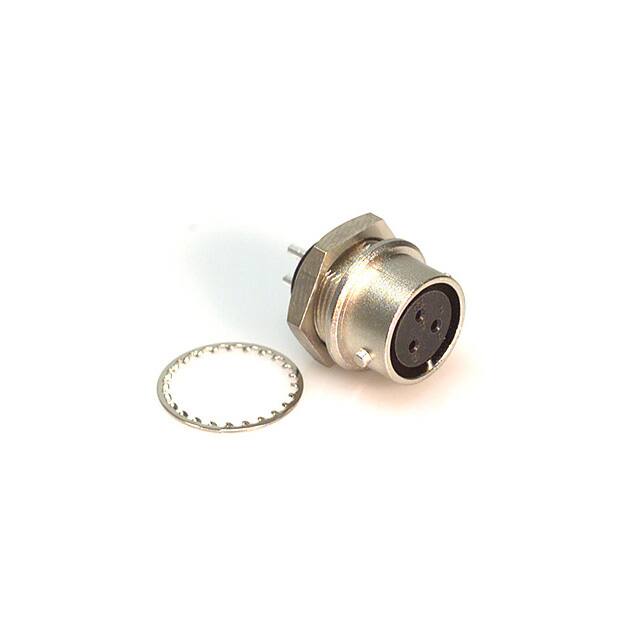

RM12BRD-3S(71)

Teknik Özellikler

Reach Svhc

Unknown

Option

GENERAL PURPOSE

Durability

2000 Cycles

Contact Finish Thickness Mating

196.9μin 5.00μm

Mixed Contacts

NO

Insulation Resistance

1GOhm

Insert Material

Diallyl Phthalate (DAP)

Voltage Rated Ac

500V

Gender

Receptacle

Connector Type

Receptacle, Female Sockets

Orientation

Keyed

Montaj

Bulkhead, Jam Nut, Panel, Rear Side Nut

Kurşunsuz Kodu

yes

Iec Conformance

NO

Fabrika Tedarik Süresi

12 Weeks

Total Number Of Contacts

3

Mil Conformance

NO

Shell Finish

Nickel

Empty Shell

NO

JESD-609 Kodu

e4

Shell Material

Zinc Alloy

Contact Materials

Copper Alloy

Contact Finish Mating

Silver

Body Material

Brass

Contact Resistance

4mOhm

Shell Size Insert

12

Seri

RM

Contact Gender

Female

Nem Hassasiyeti (MSL)

1 (Unlimited)

Din Conformance

NO

Fastening Type

Bayonet Lock

Reliability

COMMERCIAL

Radyasyon Dayanımı

No

Pozisyon Sayısı

3

Backshell Type

SOLID

Flammability Rating

UL94 V-0

Filter Feature

NO

Voltage Rated Dc

500V

Terminal

Solder Cup

Working Voltage

500V
