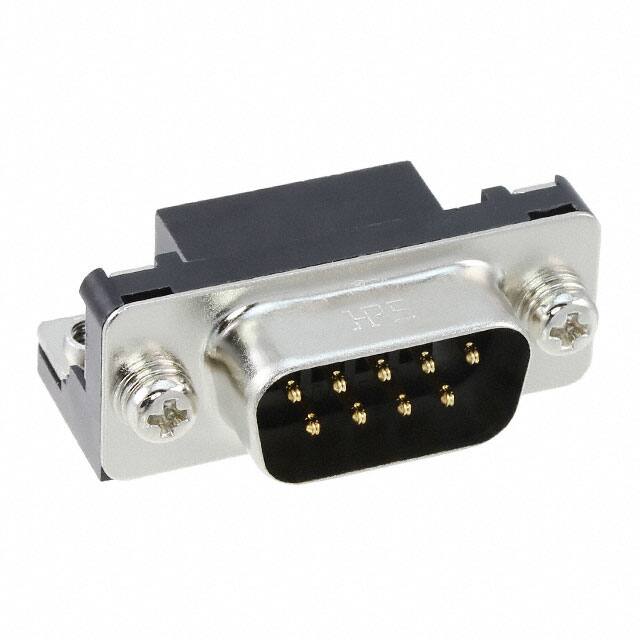

RDED-9P(55)

Teknik Özellikler

Connector Type

Plug, Male Pins

Parça Durumu

Active

Nem Hassasiyeti (MSL)

1 (Unlimited)

Flange Feature

Housing/Shell (M2.6)

Dielectric Withstanding Voltage

1750VAC V

Yayın Yılı

2003

REACH Uyumluluk Kodu

unknown

Shell Material Finish

Steel, Nickel Plated

Dielectric Material

Polybutylene Terephthalate (PBT)

Çalışma Sıcaklığı

-55°C~85°C

Reliability

COMMERCIAL

Terminal

Solder

Connector Style

D-Sub

Total Number Of Contacts

9

Montaj Tipi

Panel Mount, Through Hole, Right Angle

Shell Size Connector Layout

1 DE E

Contact Finish

Gold

Length Termination

0.157 inch

Housing Material

PBT

Insulation Resistance

5000000000Ohm

RoHS Durumu

RoHS Compliant

Contact Finish Thickness

8.00μin 0.203μm

Contact Materials

Phosphor Bronze

Pozisyon Sayısı

9

Sıra Sayısı

2

Material Flammability Rating

UL94 V-0

Pcb Contact Pattern

STAGGERED

Renk

Black

Contact Type

Signal

Number Of Pcb Rows

2

Seri

RD*D

Montaj

Through Hole

Ambalaj

Tray

Reference Standard

UL

Nominal Gerilim

350V

Kurşunsuz

Lead Free

Fabrika Tedarik Süresi

12 Weeks

Akım Değeri

3A
