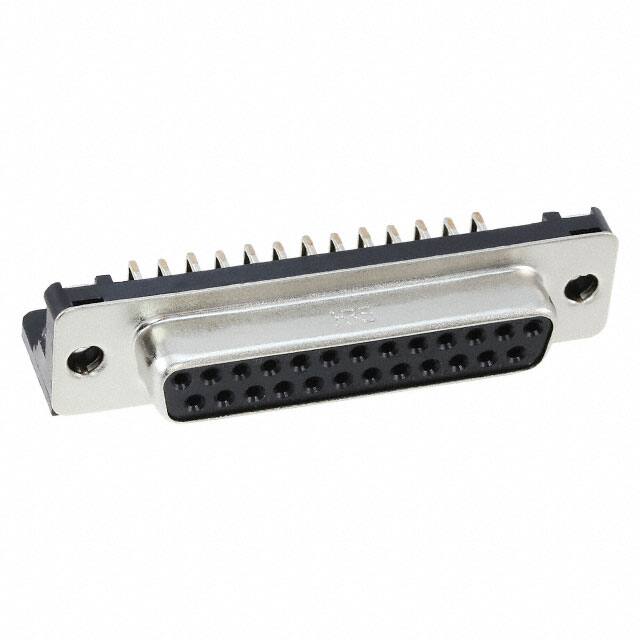

RDBD-25SE1/M2.6(55)

Teknik Özellikler

Nem Hassasiyeti (MSL)

1 (Unlimited)

Flange Feature

Housing/Shell (M2.6)

Dielectric Withstanding Voltage

1800VAC V

Rated Current Signal

3A

Connector Type

Receptacle, Female Sockets

Plating Thickness

8μin

Parça Durumu

Active

Dielectric Material

Polybutylene Terephthalate (PBT)

Body Breadth

0.494 inch

Shell Material Finish

Steel, Nickel Plated

REACH Uyumluluk Kodu

unknown

Çalışma Sıcaklığı

-55°C~85°C

Reliability

COMMERCIAL

Shell Size Connector Layout

3 DB B

Montaj Tipi

Panel Mount, Through Hole, Right Angle

Contact Finish

Gold

Total Number Of Contacts

25

Terminal

Solder

Connector Style

D-Sub

Insulation Resistance

5000000000Ohm

Housing Material

PBT

RoHS Durumu

RoHS Compliant

Length Termination

0.157 inch

Özellikler

Board Lock

Contact Type

Signal

Renk

Black

Contact Finish Thickness

8.00μin 0.203μm

Pozisyon Sayısı

25

Contact Materials

Phosphor Bronze

Material Flammability Rating

UL94 V-0

Pcb Contact Pattern

STAGGERED

ECCN Kodu

EAR99

Sıra Sayısı

2

Seri

RD*D

Number Of Pcb Rows

2

Montaj

Through Hole

Nominal Gerilim

350V

HTS Kodu

8536.69.40.30

Reference Standard

UL

Akım Değeri

3A
