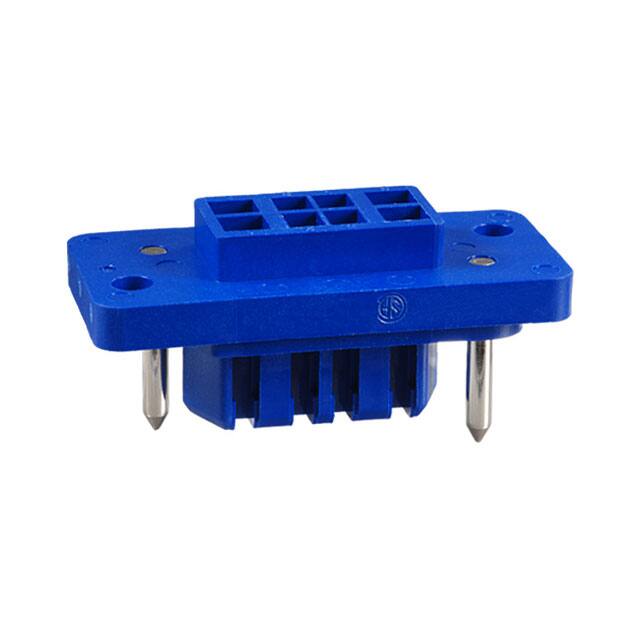

QR/P-8P-C(01)

Teknik Özellikler

Iec Conformance

NO

Contact Materials

Bronze

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Fabrika Tedarik Süresi

10 Weeks

Yayın Yılı

2005

Connector Style

Rack and Panel

Number Of Conductors

ONE

Mixed Contacts

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Total Number Of Contacts

8

Montaj Tipi

Panel Mount

Seri

QR/P

Contact Plating

Gold

RoHS Durumu

RoHS Compliant

Option

GENERAL PURPOSE

Mounting Option1

LOCKING

Connector Type

Housing for Male Pins

Ul Flammability Code

94V-0

Reference Standard

UL,CSA,TUV

Empty Shell

YES

Filter Feature

NO

Parça Durumu

Active

REACH Uyumluluk Kodu

unknown

Insulation Resistance

5000000000Ohm

Contact Finish Mating

TIN

Kurşunsuz

Lead Free

Terminal

Crimp

Mil Conformance

NO

Sıra Sayısı

2

Pozisyon Sayısı

8

Operating Temperature Max

60°C

Özellikler

Guide Pin

Renk

Blue

Reliability

COMMERCIAL

Ambalaj

Bulk

Connector Usage

Plug

Operating Temperature Min

-10°C

Din Conformance

NO

Note

Contacts Not Included

Housing Material

PBT
