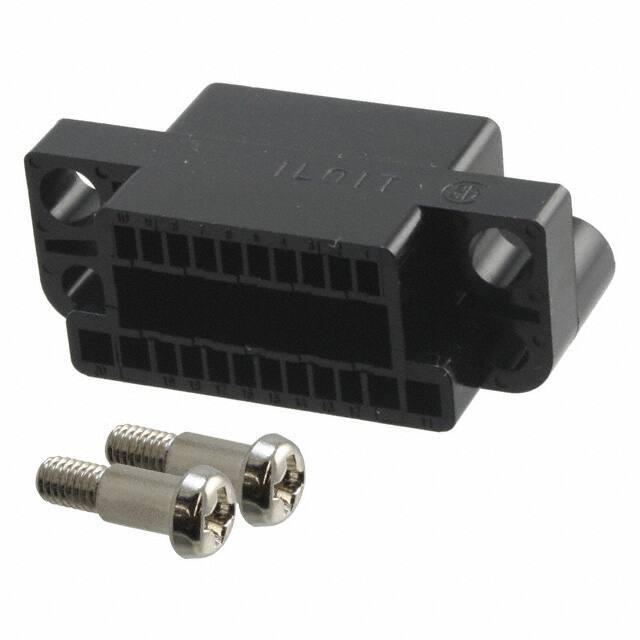

QR/P8-20S-C(01)

Teknik Özellikler

Akım Değeri

3A

Yayın Yılı

2009

Mil Conformance

NO

Contact Plating

Gold

Total Number Of Contacts

20

Depth

19mm

Sıra Sayısı

2

Number Of Conductors

ONE

Iec Conformance

NO

Uzunluk

39mm

Mixed Contacts

NO

Parça Durumu

Active

Orientation

Straight

Connector Usage

Receptacle

Fabrika Tedarik Süresi

10 Weeks

Note

Contacts Not Included

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Ul Flammability Code

94V-0

Contact Materials

Bronze

Contact Finish Termination

Tin (Sn)

Seri

QR/P8

Gender

Female

Housing Material

Polycarbonate

Pozisyon Sayısı

20

Operating Temperature Min

-10°C

Radyasyon Dayanımı

No

Body Material

PC, Polycarbonate

Body Breadth

0.551 inch

Montaj Tipi

Panel Mount

Connector Style

Rack and Panel

Özellikler

Mating Guide

Operating Temperature Max

60°C

Genişlik

14mm

Pitch

0.079 2.00mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Reliability

COMMERCIAL

Din Conformance

NO

Kurşunsuz Kodu

yes

Empty Shell

NO

Option

GENERAL PURPOSE
