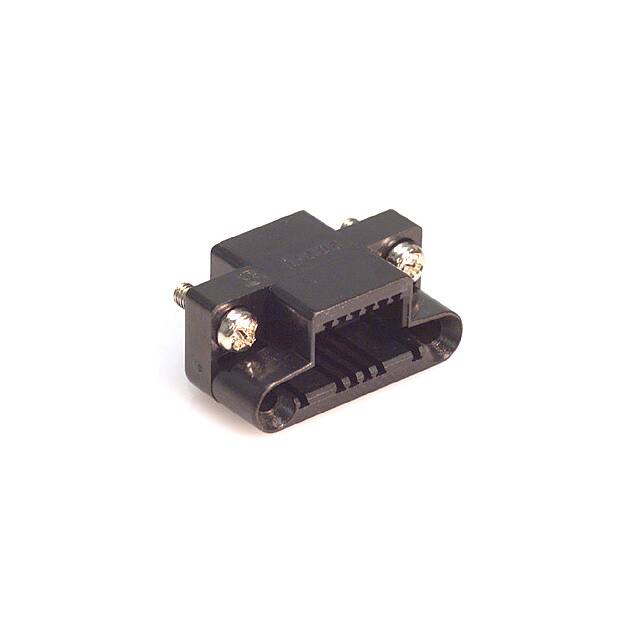

QR/P8-12S-C(01)

Teknik Özellikler

Termination Type

CRIMP

Connector Type

Housing for Female Sockets

Kurşunsuz

Lead Free

Montaj

Panel, Surface Mount

HTS Kodu

8536.69.40.30

Renk

Black

Contact Style

BELLOWED TYPE

RoHS Durumu

RoHS Compliant

Insulation Resistance

1000000000Ohm

Filter Feature

NO

Reach Svhc

No SVHC

Reference Standard

UL, CSA

Ambalaj

Bulk

Option

GENERAL PURPOSE

ECCN Kodu

EAR99

JESD-609 Kodu

e4

Montaj Tipi

Panel Mount

Voltage Rated Ac

30V

Connector Style

Rack and Panel

Özellikler

Mating Guide

Operating Temperature Max

60°C

Genişlik

14mm

Pitch

0.079 2.00mm

Reliability

COMMERCIAL

Nem Hassasiyeti (MSL)

1 (Unlimited)

Din Conformance

NO

Kurşunsuz Kodu

yes

Empty Shell

NO

Gender

Female

Housing Material

Polycarbonate

Pozisyon Sayısı

12

Body Material

PC, Polycarbonate

Operating Temperature Min

-10°C

Body Breadth

0.551 inch

REACH Uyumluluk Kodu

unknown

Fabrika Tedarik Süresi

10 Weeks

Connector Usage

Receptacle

Note

Contacts Not Included

Ul Flammability Code

94V-0

Mating Information

MULTIPLE MATING PARTS AVAILABLE
