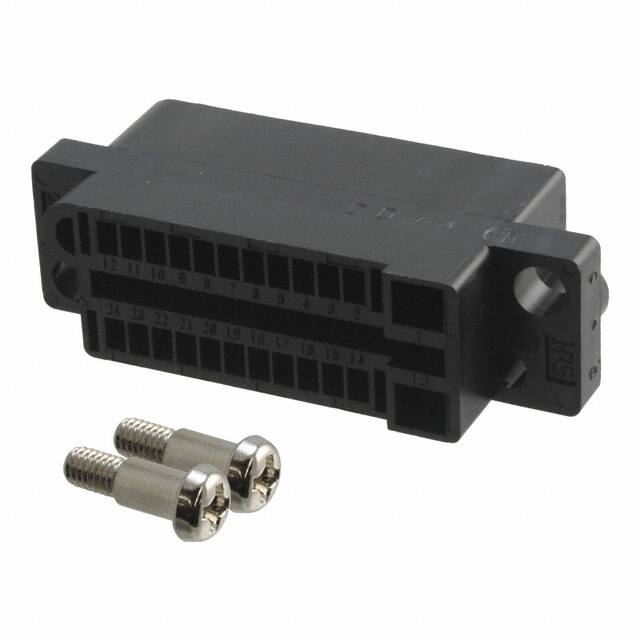

QR/P6-24S-C(01)

Teknik Özellikler

ECCN Kodu

EAR99

Dielectric Withstanding Voltage

1000VAC V

Option

GENERAL PURPOSE

JESD-609 Kodu

e3

Montaj Tipi

Panel Mount

Empty Shell

NO

Kurşunsuz Kodu

yes

Din Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Reliability

COMMERCIAL

Pitch

0.100 2.54mm

Operating Temperature Max

60°C

Özellikler

Mating Guide

Voltage Rated Ac

120V

Connector Style

Rack and Panel

Kurşunsuz

Lead Free

Termination Type

CRIMP

Contact Resistance

10mOhm

Connector Type

Housing for Female Sockets

Insulation Resistance

5000000000Ohm

RoHS Durumu

RoHS Compliant

Renk

Black

HTS Kodu

8536.69.40.30

Montaj

Panel

Filter Feature

NO

Contact Finish Mating

TIN

Ambalaj

Bulk

Reference Standard

UL

Mixed Contacts

NO

Iec Conformance

NO

Parça Durumu

Active

Mil Conformance

NO

Yayın Yılı

2005

Akım Değeri

10A

Number Of Conductors

ONE

Sıra Sayısı

2

Contact Plating

Gold

Total Number Of Contacts

24

Operating Temperature Min

-10°C

Pozisyon Sayısı

24
