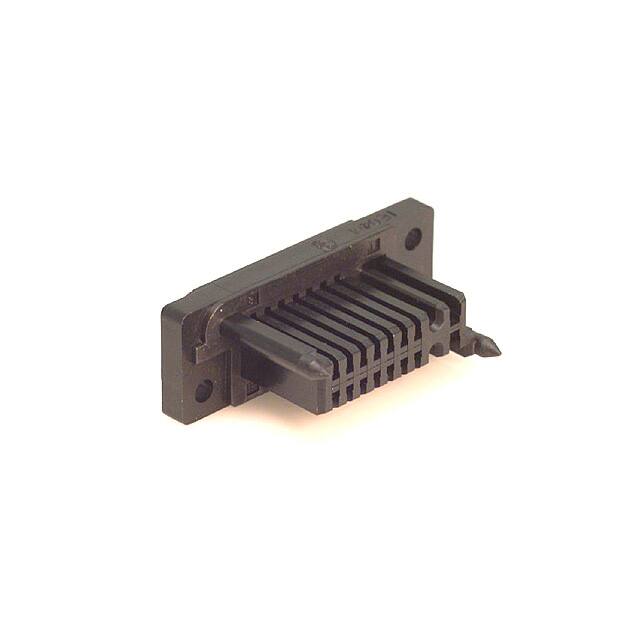

QR/P6-16P-C(01)

Teknik Özellikler

Contact Plating

Gold

Total Number Of Contacts

16

Sıra Sayısı

2

Number Of Conductors

ONE

Mil Conformance

NO

Akım Değeri

10A

Yayın Yılı

2005

Parça Durumu

Active

Iec Conformance

NO

Mixed Contacts

NO

Ul Flammability Code

94V-0

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Seri

QR/P6

Contact Finish Termination

TIN

Contact Materials

Bronze

Note

Contacts Not Included

Connector Usage

Plug

Fabrika Tedarik Süresi

10 Weeks

REACH Uyumluluk Kodu

unknown

Housing Material

Polybutylene

Operating Temperature Min

-10°C

Pozisyon Sayısı

16

Pitch

0.100 2.54mm

Özellikler

Guide Pin

Connector Style

Rack and Panel

Voltage Rated Ac

120V

Operating Temperature Max

60°C

Empty Shell

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Reliability

COMMERCIAL

Kurşunsuz Kodu

yes

Din Conformance

NO

Montaj Tipi

Panel Mount

JESD-609 Kodu

e3

Option

GENERAL PURPOSE

ECCN Kodu

EAR99

Dielectric Withstanding Voltage

1000VAC V

Ambalaj

Bulk

Reference Standard

UL

Contact Finish Mating

TIN
