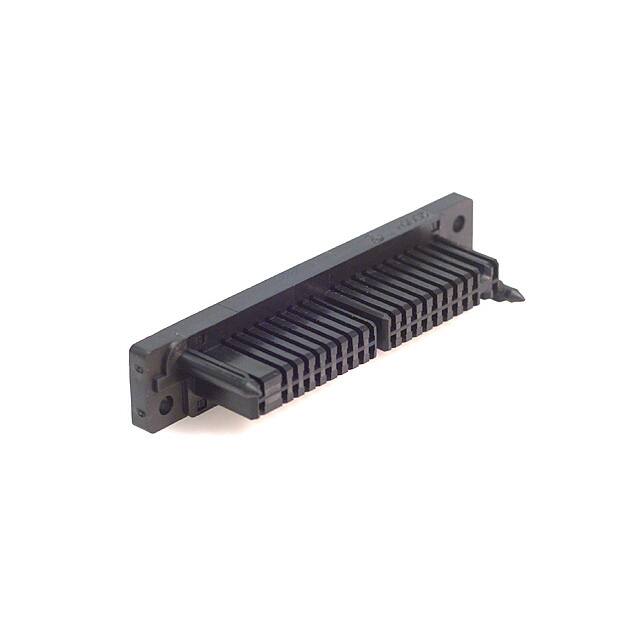

QR/P4-40P-C(01)

Teknik Özellikler

Contact Resistance

15mOhm

Connector Type

Housing for Male Pins

Polarization Key

POLARIZED HOUSING

Kurşunsuz

Lead Free

Renk

Black

Insulation Resistance

5000000000Ohm

Contact Style

SQ PIN-SKT

RoHS Durumu

RoHS Compliant

Contact Finish Mating

TIN

Filter Feature

NO

Ambalaj

Bulk

Reference Standard

UL,CSA,TUV

Option

GENERAL PURPOSE

Mounting Option1

LOCKING

ECCN Kodu

EAR99

JESD-609 Kodu

e3

Montaj Tipi

Panel Mount

Pitch

0.100 2.54mm

Özellikler

Guide Pin

Connector Style

Rack and Panel

Operating Temperature Max

60°C

Empty Shell

YES

Reliability

COMMERCIAL

Nem Hassasiyeti (MSL)

1 (Unlimited)

Kurşunsuz Kodu

yes

Din Conformance

NO

Housing Material

PBT

Operating Temperature Min

-10°C

Pozisyon Sayısı

40

Body Breadth

0.591 inch

REACH Uyumluluk Kodu

unknown

Contact Pattern

RECTANGULAR

Note

Contacts Not Included

Connector Usage

Plug

Fabrika Tedarik Süresi

10 Weeks

Ul Flammability Code

94V-0

Shell Material

POLYBUTYLENE TEREPHTHALATE

Seri

QR/P4

Contact Materials

Bronze

Iec Conformance

NO
