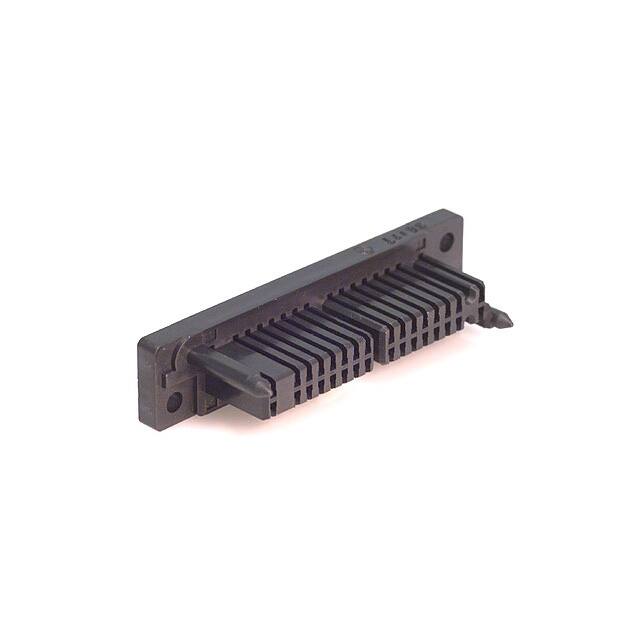

QR/P4-32P-C(01)

Teknik Özellikler

Sıra Sayısı

2

Contact Plating

Gold

Total Number Of Contacts

32

Terminal

Crimp

Yayın Yılı

2005

Body Depth

0.846 inch

Mil Conformance

NO

Parça Durumu

Active

Mixed Contacts

YES

Iec Conformance

NO

Contact Materials

Bronze

Seri

QR/P4

Shell Material

POLYBUTYLENE TEREPHTHALATE

Ul Flammability Code

94V-0

Connector Usage

Plug

Fabrika Tedarik Süresi

10 Weeks

Note

Contacts Not Included

Contact Pattern

RECTANGULAR

REACH Uyumluluk Kodu

unknown

Body Breadth

0.591 inch

Pozisyon Sayısı

32

Operating Temperature Min

-10°C

Housing Material

Lead

Kurşunsuz Kodu

yes

Din Conformance

NO

Reliability

COMMERCIAL

Nem Hassasiyeti (MSL)

1 (Unlimited)

Empty Shell

YES

Operating Temperature Max

60°C

Connector Style

Rack and Panel

Özellikler

Guide Pin

Pitch

0.100 2.54mm

Montaj Tipi

Panel Mount

JESD-609 Kodu

e3

ECCN Kodu

EAR99

Mounting Option1

LOCKING

Option

GENERAL PURPOSE

Reference Standard

UL,CSA,TUV

Ambalaj

Bulk

Filter Feature

NO
