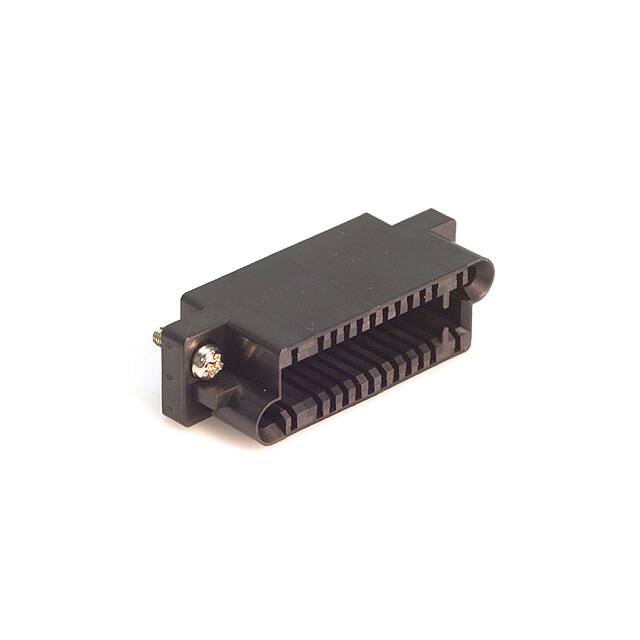

QR/P4-24S-C(01)

Teknik Özellikler

Ambalaj

Bulk

Reference Standard

UL,CSA,TUV

Contact Finish Mating

TIN

Filter Feature

NO

Renk

Black

Insulation Resistance

5000000000Ohm

RoHS Durumu

RoHS Compliant

Contact Style

SQ PIN-SKT

Kurşunsuz

Lead Free

Polarization Key

POLARIZED HOUSING

Connector Type

Housing for Female Sockets

Contact Resistance

15mOhm

Pitch

0.100 2.54mm

Operating Temperature Max

60°C

Özellikler

Mating Guide

Connector Style

Rack and Panel

Empty Shell

YES

Din Conformance

NO

Kurşunsuz Kodu

yes

Nem Hassasiyeti (MSL)

1 (Unlimited)

Reliability

COMMERCIAL

Montaj Tipi

Panel Mount

JESD-609 Kodu

e3

Option

GENERAL PURPOSE

Mounting Option1

LOCKING

Ul Flammability Code

94V-0

Seri

QR/P4

Shell Material

POLYBUTYLENE TEREPHTHALATE

Contact Materials

Bronze

Note

Contacts Not Included

Fabrika Tedarik Süresi

10 Weeks

Connector Usage

Receptacle

Body Breadth

0.591 inch

Contact Pattern

RECTANGULAR

REACH Uyumluluk Kodu

unknown

Housing Material

PC

Operating Temperature Min

-10°C

Pozisyon Sayısı

24

Terminal

Crimp

Contact Plating

Gold
