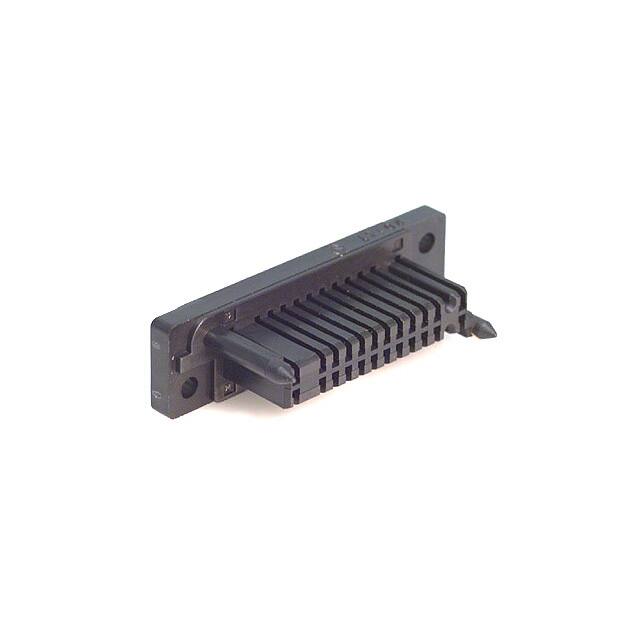

QR/P4-24P-C(01)

Teknik Özellikler

Mounting Option1

LOCKING

Mixed Contacts

YES

Option

GENERAL PURPOSE

Iec Conformance

NO

JESD-609 Kodu

e3

Parça Durumu

Active

Mil Conformance

NO

Montaj Tipi

Panel Mount

Yayın Yılı

2005

Body Depth

0.846 inch

Sıra Sayısı

2

Empty Shell

YES

Kurşunsuz Kodu

yes

Din Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Reliability

COMMERCIAL

Terminal

Crimp

Pitch

0.100 2.54mm

Total Number Of Contacts

24

Contact Plating

Gold

Operating Temperature Max

60°C

Özellikler

Guide Pin

Connector Style

Rack and Panel

Kurşunsuz

Lead Free

Operating Temperature Min

-10°C

Contact Resistance

15mOhm

Connector Type

Housing for Male Pins

Polarization Key

POLARIZED HOUSING

Pozisyon Sayısı

24

Housing Material

PBT

Insulation Resistance

5000000000Ohm

RoHS Durumu

RoHS Compliant

Contact Pattern

RECTANGULAR

Contact Style

SQ PIN-SKT

REACH Uyumluluk Kodu

unknown

Body Breadth

0.591 inch

Renk

Black

Note

Contacts Not Included

Fabrika Tedarik Süresi

10 Weeks

Filter Feature

NO
