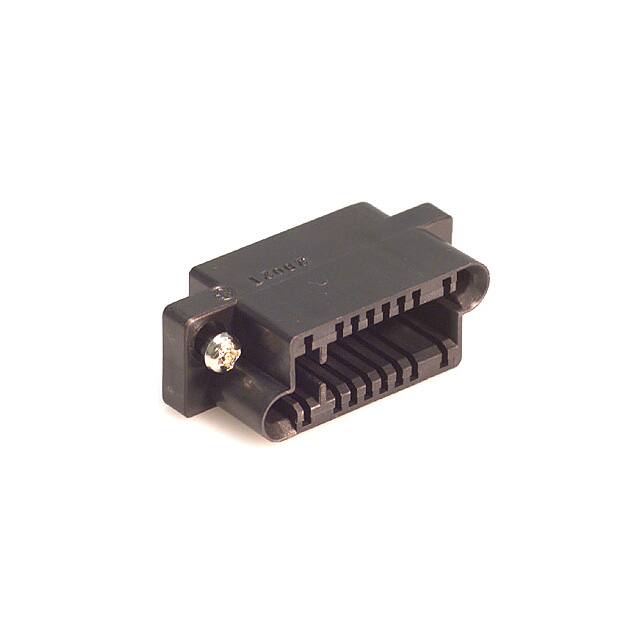

QR/P4-16S-C(01)

Teknik Özellikler

Contact Materials

Bronze

Shell Material

POLYBUTYLENE TEREPHTHALATE

Seri

QR/P4

Ul Flammability Code

94V-0

Fabrika Tedarik Süresi

10 Weeks

Connector Usage

Receptacle

Note

Contacts Not Included

REACH Uyumluluk Kodu

unknown

Contact Pattern

RECTANGULAR

Body Breadth

0.591 inch

Pozisyon Sayısı

16

Operating Temperature Min

-10°C

Housing Material

PC

Sıra Sayısı

2

Total Number Of Contacts

16

Contact Plating

Gold

Terminal

Crimp

Yayın Yılı

2009

Body Depth

0.846 inch

Mil Conformance

NO

Parça Durumu

Active

Body Length Or Diameter

1.765 inch

Mixed Contacts

YES

Iec Conformance

NO

Reference Standard

UL,CSA,TUV

Ambalaj

Bulk

Filter Feature

NO

Contact Finish Mating

TIN

Contact Style

SQ PIN-SKT

RoHS Durumu

RoHS Compliant

Insulation Resistance

5000000000Ohm

Montaj

Panel

Renk

Black

Polarization Key

POLARIZED HOUSING

Connector Type

Housing for Female Sockets

Contact Resistance

15mOhm

Kurşunsuz

Lead Free

Reliability

COMMERCIAL

Nem Hassasiyeti (MSL)

1 (Unlimited)

Kurşunsuz Kodu

yes
