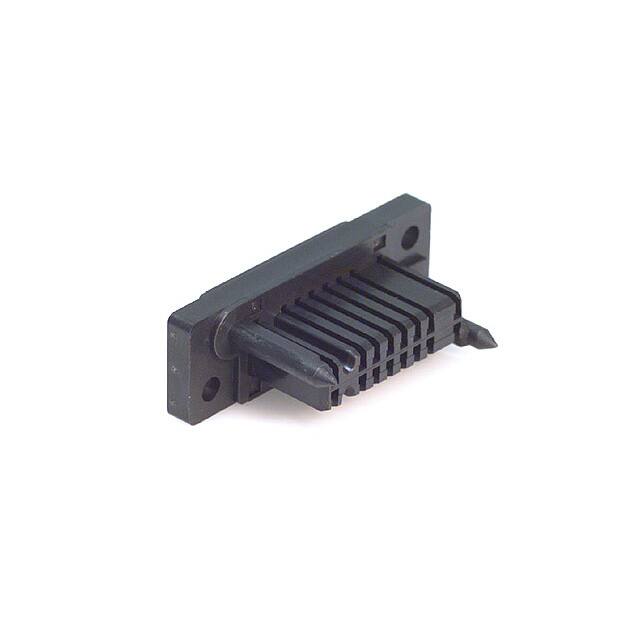

QR/P4-16P-C(01)

Teknik Özellikler

Housing Material

Lead

Operating Temperature Min

-10°C

Pozisyon Sayısı

16

Body Breadth

0.591 inch

Contact Pattern

RECTANGULAR

REACH Uyumluluk Kodu

unknown

Note

Contacts Not Included

Connector Usage

Plug

Fabrika Tedarik Süresi

10 Weeks

Ul Flammability Code

94V-0

Seri

QR/P4

Shell Material

POLYBUTYLENE TEREPHTHALATE

Contact Materials

Bronze

Iec Conformance

NO

Mixed Contacts

YES

Body Length Or Diameter

1.765 inch

Parça Durumu

Active

Mil Conformance

NO

Yayın Yılı

2005

Body Depth

0.846 inch

Terminal

Crimp

Contact Plating

Gold

Total Number Of Contacts

16

Sıra Sayısı

2

Kurşunsuz

Lead Free

Contact Resistance

15mOhm

Connector Type

Housing for Male Pins

Polarization Key

POLARIZED HOUSING

Renk

Black

HTS Kodu

8536.69.40.30

Insulation Resistance

5000000000Ohm

RoHS Durumu

RoHS Compliant

Contact Style

SQ PIN-SKT

Contact Finish Mating

TIN

Filter Feature

NO

Ambalaj

Bulk

Reference Standard

UL,CSA,TUV

Option

GENERAL PURPOSE

Mounting Option1

LOCKING

ECCN Kodu

EAR99
