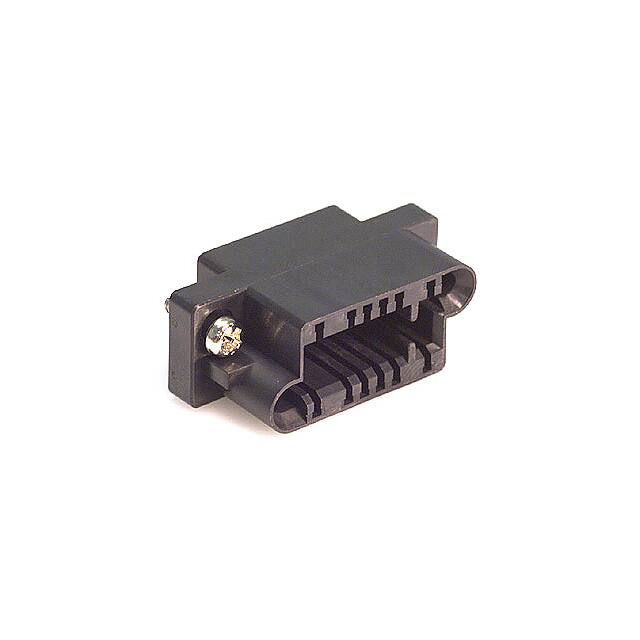

QR/P4-12S-C(01)

Teknik Özellikler

REACH Uyumluluk Kodu

unknown

Contact Pattern

RECTANGULAR

Body Breadth

0.591 inch

Operating Temperature Min

-10°C

Pozisyon Sayısı

12

Housing Material

PBT

Shell Material

POLYBUTYLENE TEREPHTHALATE

Seri

QR/P4

Contact Materials

Bronze

Ul Flammability Code

94V-0

Note

Contacts Not Included

Fabrika Tedarik Süresi

10 Weeks

Connector Usage

Receptacle

Orientation

Straight

Parça Durumu

Active

Mixed Contacts

YES

Body Length Or Diameter

1.567 inch

Iec Conformance

NO

Sıra Sayısı

2

Terminal

Crimp

Contact Plating

Gold

Total Number Of Contacts

12

Mil Conformance

NO

Body Depth

0.846 inch

Yayın Yılı

2005

Insulation Resistance

5000000000Ohm

Contact Style

SQ PIN-SKT

RoHS Durumu

RoHS Compliant

Renk

Black

Contact Resistance

15mOhm

Connector Type

Housing for Female Sockets

Polarization Key

POLARIZED HOUSING

Kurşunsuz

Lead Free

Ambalaj

Bulk

Reference Standard

UL,CSA,TUV

Filter Feature

NO

Contact Finish Mating

TIN

JESD-609 Kodu

e3

Mounting Option1

LOCKING

Option

GENERAL PURPOSE
