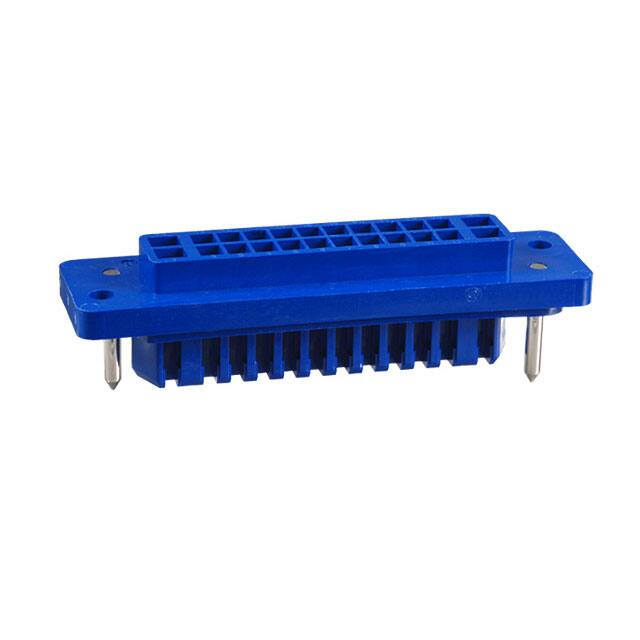

QR/P-24P-C(01)

Teknik Özellikler

Reliability

COMMERCIAL

Connector Usage

Plug

Operating Temperature Min

-10°C

Shell Material

POLYBUTYLENE TEREPHTHALATE

Pitch

0.177 4.50mm

Kurşunsuz Kodu

yes

Body Length Or Diameter

3.406 inch

Termination Type

CRIMP

Mil Conformance

NO

Operating Temperature Max

60°C

Insulation Materials

POLYBUTYLENE TEREPHTHALATE

Sıra Sayısı

2

Pozisyon Sayısı

24

ECCN Kodu

EAR99

Empty Shell

YES

REACH Uyumluluk Kodu

unknown

Contact Finish Mating

GOLD OVER NICKEL

Parça Durumu

Active

Total Number Of Contacts

24

Fabrika Tedarik Süresi

10 Weeks

Iec Conformance

NO

Number Of Conductors

ONE

RoHS Durumu

RoHS Compliant

Montaj Tipi

Panel Mount

Seri

QR/P

Note

Contacts Not Included

Ambalaj

Bulk

Din Conformance

NO

Body Breadth

0.945 inch

Contact Resistance

10mOhm

Montaj

Panel

JESD-609 Kodu

e4

Contact Finish Termination

Gold (Au) - with Nickel (Ni) barrier

Kurşunsuz

Lead Free

Özellikler

Guide Pin

Renk

Blue

Reference Standard

UL,CSA,TUV

Filter Feature

NO

Option

GENERAL PURPOSE

Connector Type

Housing for Male Pins
