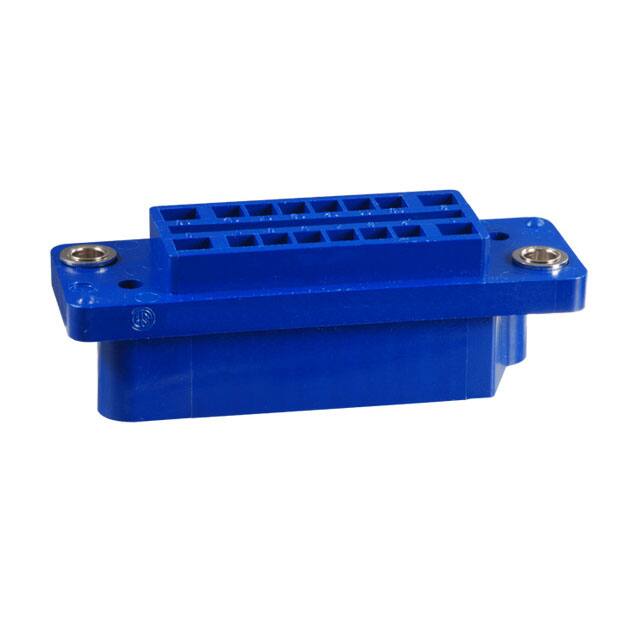

QR/P-16S-C(01)

Teknik Özellikler

RoHS Durumu

Non-RoHS Compliant

Montaj Tipi

Panel Mount

Seri

QR/P

Mixed Contacts

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Total Number Of Contacts

16

Yayın Yılı

2005

Iec Conformance

NO

Contact Materials

NOT SPECIFIED

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Connector Style

Rack and Panel

Number Of Conductors

ONE

REACH Uyumluluk Kodu

unknown

Insulation Resistance

5000000000Ohm

Contact Finish Mating

NOT SPECIFIED

HTS Kodu

8536.69.40.30

Parça Durumu

Obsolete

ECCN Kodu

EAR99

Reference Standard

UL,CSA,TUV

Filter Feature

NO

Empty Shell

YES

Connector Type

Housing for Female Sockets

Option

GENERAL PURPOSE

Ul Flammability Code

94V-0

Operating Temperature Max

60°C

Renk

Blue

Özellikler

Mating Guide

Insulation Materials

POLYBUTYLENE TEREPHTHALATE

Pozisyon Sayısı

16

Sıra Sayısı

2

Mil Conformance

NO

Kurşunsuz

Contains Lead

Pitch

0.177 4.50mm

Contact Resistance

10mOhm

Montaj

Panel

Body Breadth

0.945 inch

Shell Material

POLYBUTYLENE TEREPHTHALATE

Termination Type

CRIMP

Note

Contacts Not Included

Reliability

COMMERCIAL
