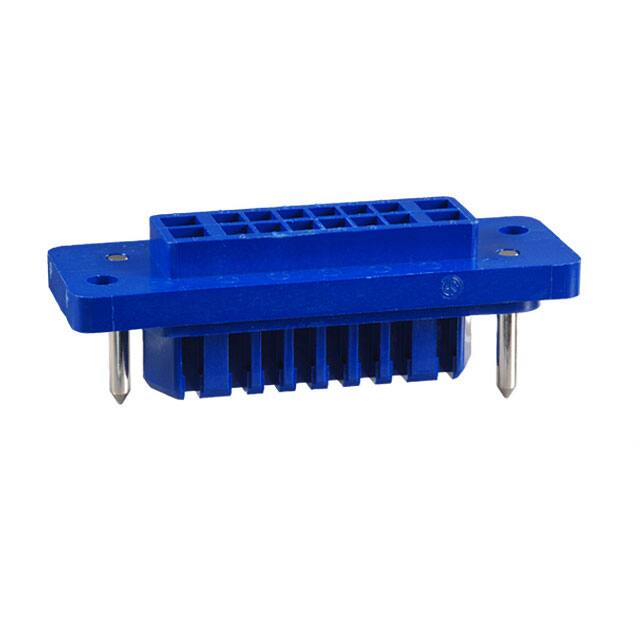

QR/P-16P-C(01)

Teknik Özellikler

Sıra Sayısı

2

Pozisyon Sayısı

16

Özellikler

Guide Pin

Insulation Materials

POLYBUTYLENE TEREPHTHALATE

Renk

Blue

Operating Temperature Max

60°C

Kurşunsuz

Lead Free

Mil Conformance

NO

Contact Finish Termination

Tin (Sn)

Termination Type

CRIMP

Kurşunsuz Kodu

yes

Body Breadth

0.945 inch

Shell Material

POLYBUTYLENE TEREPHTHALATE

JESD-609 Kodu

e3

Pitch

0.177 4.50mm

Contact Resistance

10mOhm

Montaj

Panel

Connector Usage

Plug

Operating Temperature Min

-10°C

Din Conformance

NO

Reliability

COMMERCIAL

Ambalaj

Bulk

Note

Contacts Not Included

Seri

QR/P

Montaj Tipi

Panel Mount

RoHS Durumu

RoHS Compliant

Connector Style

Rack and Panel

Number Of Conductors

ONE

Contact Materials

COPPER ALLOY

Iec Conformance

NO

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Fabrika Tedarik Süresi

10 Weeks

Yayın Yılı

2005

Total Number Of Contacts

16

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mixed Contacts

NO

Parça Durumu

Active

Contact Finish Mating

TIN

Insulation Resistance

5000000000Ohm

REACH Uyumluluk Kodu

unknown
