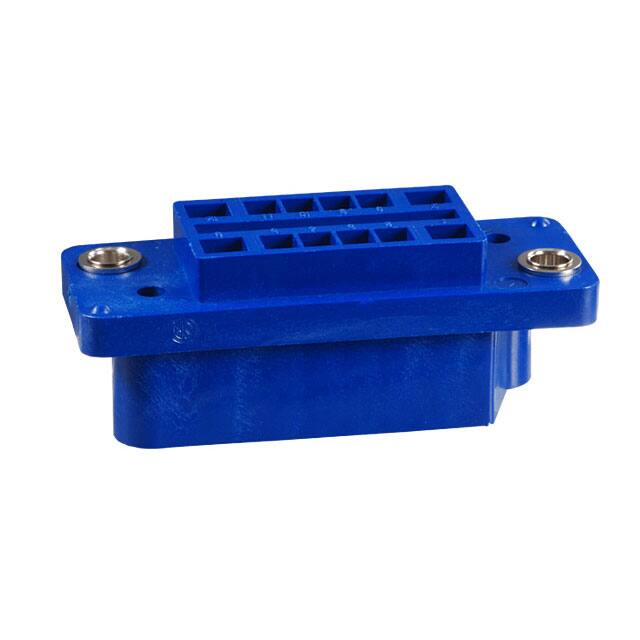

QR/P-12S-C(01)

Teknik Özellikler

Insulation Materials

POLYBUTYLENE TEREPHTHALATE

Özellikler

Mating Guide

Renk

Blue

Operating Temperature Max

60°C

Sıra Sayısı

2

Pozisyon Sayısı

12

Mil Conformance

NO

Genişlik

24mm

Kurşunsuz

Contains Lead

Uzunluk

61mm

Yükseklik

18mm

Body Breadth

0.945 inch

Shell Material

POLYBUTYLENE TEREPHTHALATE

Montaj

Panel

Contact Resistance

10mOhm

Pitch

0.177 4.50mm

Termination Type

CRIMP

Note

Contacts Not Included

Connector Usage

Receptacle

Din Conformance

NO

Operating Temperature Min

-10°C

Ambalaj

Bulk

Reliability

COMMERCIAL

RoHS Durumu

Non-RoHS Compliant

Seri

QR/P

Montaj Tipi

Panel Mount

Total Number Of Contacts

12

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mixed Contacts

NO

Number Of Conductors

ONE

Connector Style

Rack and Panel

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Contact Materials

NOT SPECIFIED

Iec Conformance

NO

Yayın Yılı

2005

Insulation Resistance

5000000000Ohm

Contact Finish Mating

NOT SPECIFIED

REACH Uyumluluk Kodu

unknown

Parça Durumu

Obsolete

Empty Shell

YES
