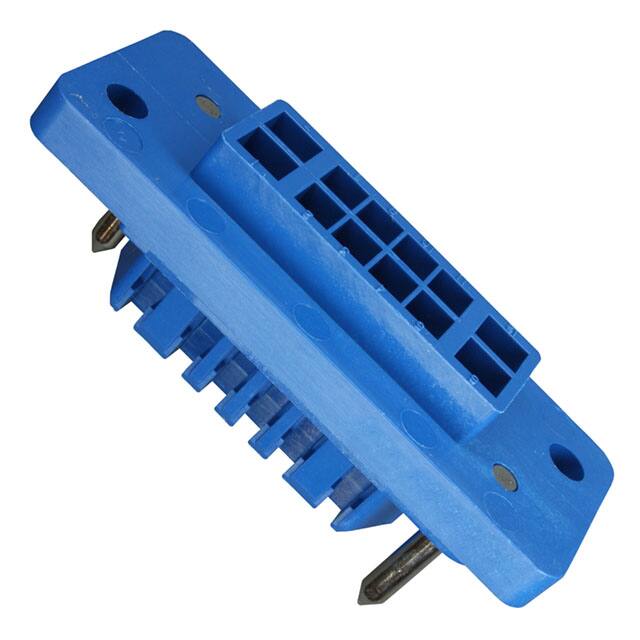

QR/P-12P-C(01)

Teknik Özellikler

Operating Temperature Min

-10°C

Din Conformance

NO

Connector Usage

Plug

Reliability

COMMERCIAL

Ambalaj

Bulk

Note

Contacts Not Included

Housing Material

PBT

Kurşunsuz Kodu

yes

JESD-609 Kodu

e3

Pitch

0.177 4.50mm

Contact Resistance

10mOhm

Montaj

Panel

Body Breadth

0.945 inch

Shell Material

POLYBUTYLENE TEREPHTHALATE

Kurşunsuz

Lead Free

Mil Conformance

NO

Terminal

Crimp

Pozisyon Sayısı

12

Sıra Sayısı

2

Renk

Blue

Özellikler

Guide Pin

Operating Temperature Max

60°C

Ul Flammability Code

94V-0

Connector Type

Housing for Male Pins

Option

GENERAL PURPOSE

Filter Feature

NO

Empty Shell

YES

Reference Standard

UL,CSA,TUV

ECCN Kodu

EAR99

Parça Durumu

Active

Insulation Resistance

5000000000Ohm

Contact Finish Mating

TIN

HTS Kodu

8536.69.40.30

REACH Uyumluluk Kodu

unknown

Connector Style

Rack and Panel

Number Of Conductors

ONE

Yayın Yılı

2005

Iec Conformance

NO

Contact Materials

Bronze

Mating Information

MULTIPLE MATING PARTS AVAILABLE
