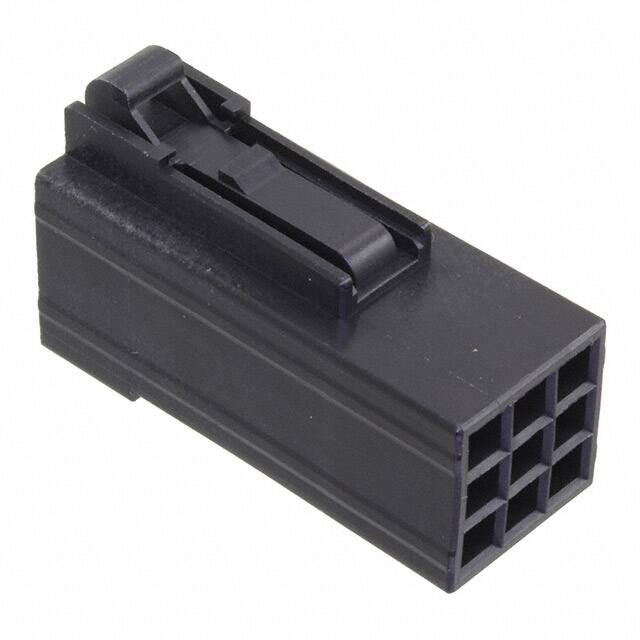

PS2-9PC

Teknik Özellikler

Seri

PS2

Montaj Tipi

Free Hanging (In-Line)

Contact Resistance

100mOhm

Body Breadth

0.551 inch

Parça Durumu

Active

Renk

Black

Sıra Sayısı

3

Pozisyon Sayısı

9

Row Spacing

0.244 (6.20mm)

Fabrika Tedarik Süresi

10 Weeks

Contact Type

Male Pin

Body Length Or Diameter

0.571 inch

Polarization Key

POLARIZED HOUSING

Total Number Of Contacts

9

Nem Hassasiyeti (MSL)

1 (Unlimited)

Montaj

Free Hanging

Connector Type

Plug

Body Depth

1.425 inch

Contact Gender

FEMALE

Pitch

0.181 4.60mm

Reliability

COMMERCIAL

Reference Standard

UL

Fastening Type

Latch Lock

Note

Contacts Not Included

REACH Uyumluluk Kodu

unknown

Ambalaj

Bulk

Insulation Resistance

5000000000Ohm

Insulation Materials

SYNTHETIC RESIN

Operating Temperature Max

105°C

Operating Temperature Min

-40°C

RoHS Durumu

RoHS Compliant

Contact Termination

Crimp

Dielectric Withstanding Voltage

1000VAC V

Rated Current Signal

5A

Durability

50 Cycles
