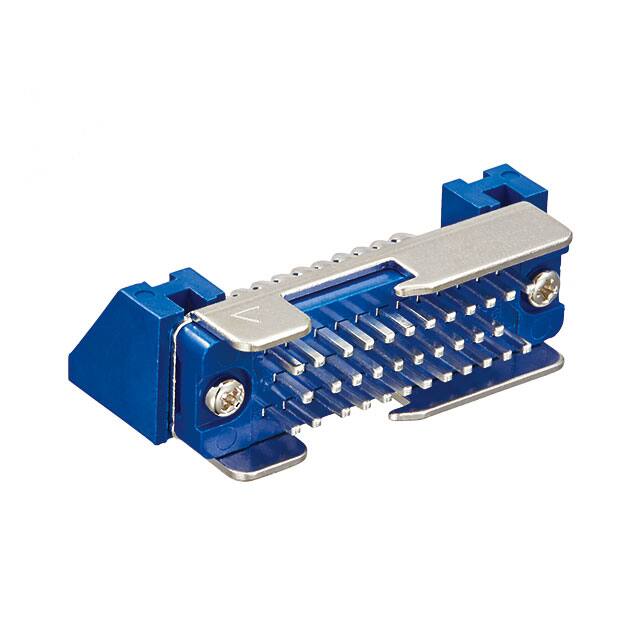

PR-1634BA-STAR(50)

Teknik Özellikler

Contact Length Post

0.138 3.50mm

Insulation Resistance

1000000000Ohm

Contact Shape

Square

Connector Type

Header, Reverse Pin

Montaj

Through Hole

Shrouding

Shrouded - 2 Wall

Dielectric Withstanding Voltage

1000VAC V

Pcb Contact Row Spacing

2.4892 mm

Insulation Color

Blue

Mating Contact Pitch

0.098 inch

Fabrika Tedarik Süresi

10 Weeks

Özellikler

Bracket

Pcb Contact Pattern

STAGGERED

Yayın Yılı

2016

Insulation Height

0.618 15.70mm

RoHS Durumu

RoHS Compliant

Contact Materials

Brass

Contact Resistance

7mOhm

Contact Type

Male Pin

Parça Durumu

Active

Contact Finish Mating

Silver

Seri

Sumicon 1600

Ambalaj

Bulk

Material Flammability Rating

UL94 V-0

Nominal Gerilim

300V

Body Length Or Diameter

1.772 inch

REACH Uyumluluk Kodu

unknown

Style

Board to Cable/Wire

Number Of Pcb Rows

3

Fastening Type

Latch Lock

Pozisyon Sayısı

34

Montaj Tipi

Through Hole, Right Angle

Number Of Positions Loaded

All

Nem Hassasiyeti (MSL)

1 (Unlimited)

Terminal

Solder

Current Rating Amps

3A

Mating Contact Row Spacing

0.098 inch

Sıra Sayısı

3

Terminal Adımı

2.4892mm

Body Breadth

0.512 inch
