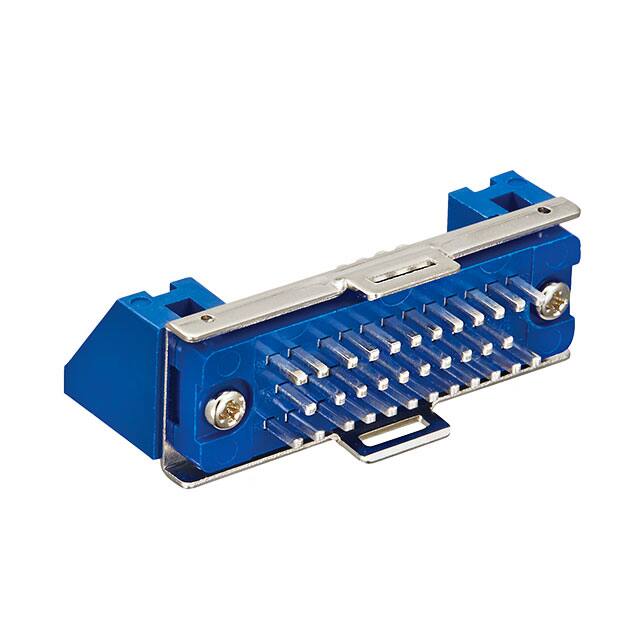

PR-1634BA-ST(50)

Teknik Özellikler

Contact Type

Male Pin

Contact Resistance

7mOhm

Contact Materials

Brass

Parça Durumu

Active

Insulation Height

0.728 18.50mm

Yayın Yılı

2016

RoHS Durumu

RoHS Compliant

Body Length Or Diameter

1.772 inch

Nominal Gerilim

300V

Style

Board to Cable/Wire

REACH Uyumluluk Kodu

unknown

Contact Finish Mating

Silver

Seri

Sumicon 1600

Ambalaj

Bulk

Material Flammability Rating

UL94 V-0

Insulation Resistance

1000000000Ohm

Contact Shape

Square

Connector Type

Header

Montaj

Through Hole

Contact Length Post

0.138 3.50mm

Insulation Color

Blue

Mating Contact Pitch

0.098 inch

Fabrika Tedarik Süresi

10 Weeks

Özellikler

Bracket

Pcb Contact Pattern

STAGGERED

Shrouding

Shrouded - 2 Wall

Dielectric Withstanding Voltage

1000VAC V

Pcb Contact Row Spacing

2.4892 mm

Sıra Sayısı

3

Terminal Adımı

2.4892mm

Body Breadth

0.512 inch

Reliability

COMMERCIAL

Number Of Conductors

ONE

Fastening Type

Latch Holder

Number Of Pcb Rows

3

Terminal

Solder

Mating Contact Row Spacing

0.098 inch

Current Rating Amps

3A

Pozisyon Sayısı

34

Montaj Tipi

Through Hole, Right Angle
