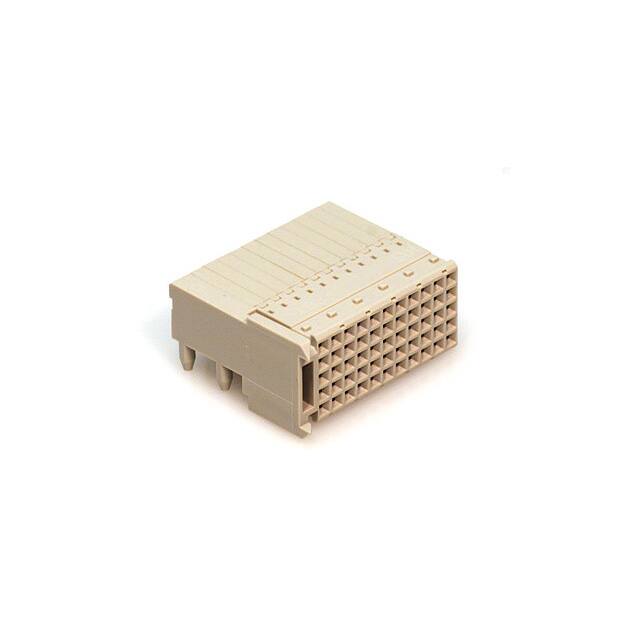

PCN21B-55SC-2PF

Teknik Özellikler

Nominal Gerilim

300V

Length Termination

0.126 inch

Din Conformance

NO

Filter Feature

NO

Seri

PCN21

Özellikler

Board Guide

Gender

Female

RoHS Durumu

RoHS Compliant

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mating Contact Row Spacing

0.079 inch

Total Number Of Contacts

55

Ambalaj

Bulk

Insulation Resistance

10000000000Ohm

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Number Of Positions Loaded

All

REACH Uyumluluk Kodu

unknown

Insulator Color

GRAY

Reference Standard

UL

Ul Flammability Code

94V-0

Montaj Tipi

Through Hole, Right Angle

Option

GENERAL PURPOSE

Montaj

Through Hole

Pcb Contact Row Spacing

2.0066 mm

Mixed Contacts

NO

Body Breadth

0.482 inch

Number Of Pcb Rows

5

Pozisyon Sayısı

55

Contact Materials

PHOSPHOR BRONZE

JESD-609 Kodu

e3

Connector Usage

Front Board

Pcb Contact Pattern

RECTANGULAR

Kurşunsuz Kodu

yes

Body Length Or Diameter

0.982 inch

Çalışma Sıcaklığı

-55°C~125°C

Parça Durumu

Obsolete

Kurşunsuz

Not Applicable

Connector Type

Receptacle, Female Sockets

Contact Finish Thickness

31.5μin 0.80μm

Iec Conformance

YES

Mil Conformance

NO
