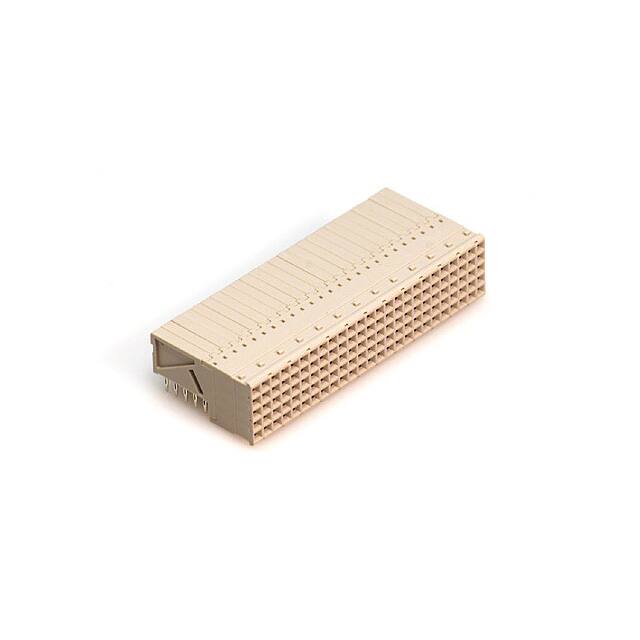

PCN21B-125SB-2PF

Teknik Özellikler

Contact Finish Thickness

31.5μin 0.80μm

Iec Conformance

YES

Mil Conformance

NO

Pcb Contact Pattern

RECTANGULAR

Kurşunsuz Kodu

yes

Body Length Or Diameter

1.967 inch

Çalışma Sıcaklığı

-55°C~125°C

Parça Durumu

Obsolete

Kurşunsuz

Lead Free

Connector Type

Receptacle, Female Sockets

Housing Material

PBT

Yayın Yılı

2002

Terminal

Press-Fit

Polarization Key

POLARIZED HOUSING

Plating Thickness

31μin

Lead Pitch

2mm

Contact Finish

Gold

Sıra Sayısı

5

Contact Style

SQ PIN-SKT

Connector Style

B 25

Akım Değeri

1.5A

Contact Pattern

RECTANGULAR

Number Of Conductors

ONE

Contact Plating

Gold, Tin

Reliability

COMMERCIAL

Pitch

0.079 2.00mm

Additional Feature

STANDARD: IEC 61076-4

Contact Resistance

30mOhm

Ambalaj

Bulk

Total Number Of Contacts

125

Mating Contact Row Spacing

0.079 inch

Housing Color

Grey

Insulation Resistance

10000000000Ohm

Number Of Positions Loaded

All

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Length Termination

0.126 inch

Din Conformance

NO

Filter Feature

NO

Gender

Receptacle

Seri

PCN21
