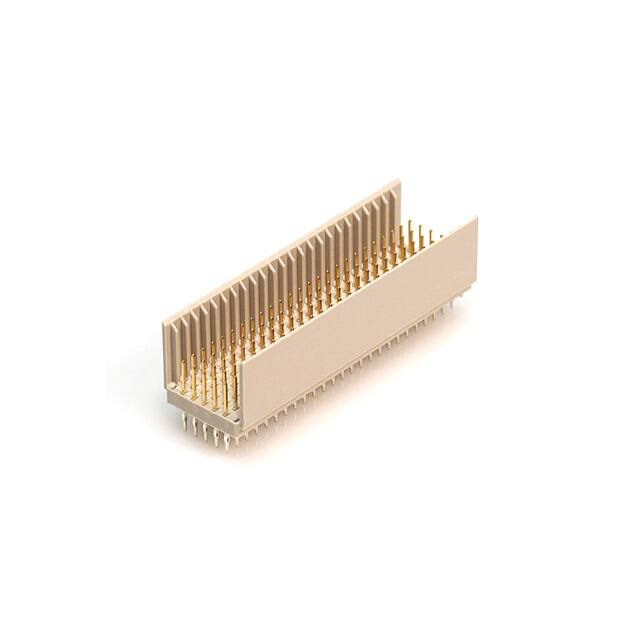

PCN21B-125PB-2PF

Teknik Özellikler

Gender

Male

Seri

PCN21

RoHS Durumu

RoHS Compliant

Nem Hassasiyeti (MSL)

1 (Unlimited)

Length Termination

0.146 inch

Filter Feature

NO

Din Conformance

NO

Housing Color

Grey

Insulation Resistance

10000000000Ohm

Number Of Positions Loaded

All

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Total Number Of Contacts

125

Ambalaj

Bulk

Mating Contact Row Spacing

0.079 inch

Montaj Tipi

Through Hole

Option

GENERAL PURPOSE

REACH Uyumluluk Kodu

unknown

Insulator Color

GRAY

Ul Flammability Code

94V-0

Reference Standard

UL

Pozisyon Sayısı

125

JESD-609 Kodu

e3

Contact Materials

Bronze

Connector Usage

Backplane

Montaj

Through Hole

Voltage Rated Ac

300V

Pcb Contact Row Spacing

2.0066 mm

Bodyshell Style

RECEPTACLE

Number Of Pcb Rows

5

Body Breadth

0.606 inch

Mixed Contacts

NO

Kurşunsuz

Lead Free

Connector Type

Header, Male Pins

Housing Material

PBT

Pcb Contact Pattern

RECTANGULAR

Kurşunsuz Kodu

yes

Body Length Or Diameter

1.982 inch

Parça Durumu

Obsolete

Çalışma Sıcaklığı

-55°C~125°C

Iec Conformance

YES
