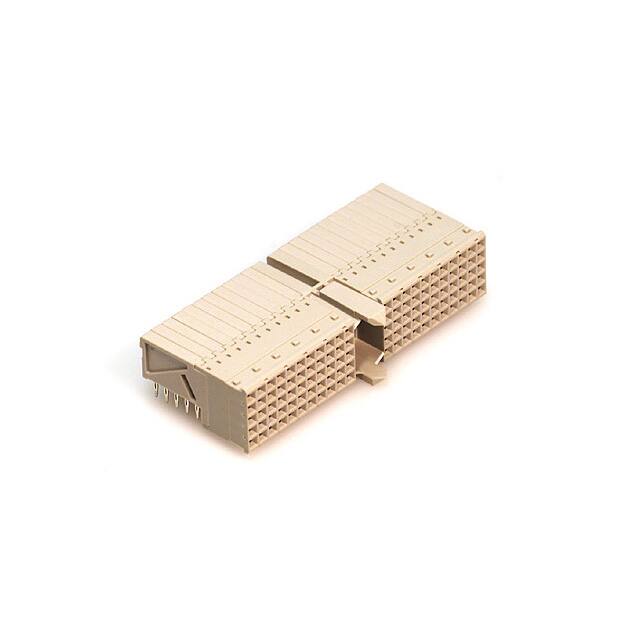

PCN21B-110SA-2PF

Teknik Özellikler

Contact Materials

Bronze

JESD-609 Kodu

e3

Connector Usage

Front Board

Pozisyon Sayısı

110

Number Of Pcb Rows

5

Mixed Contacts

NO

Body Breadth

0.482 inch

Voltage Rated Ac

300V

Montaj

Through Hole

Pcb Contact Row Spacing

2.0066 mm

Option

GENERAL PURPOSE

Montaj Tipi

Through Hole, Right Angle

Insulator Color

GRAY

Ul Flammability Code

94V-0

Reference Standard

UL

REACH Uyumluluk Kodu

unknown

Number Of Positions Loaded

All

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Housing Color

Grey

Insulation Resistance

10000000000Ohm

Total Number Of Contacts

110

Ambalaj

Bulk

Mating Contact Row Spacing

0.079 inch

RoHS Durumu

RoHS Compliant

Nem Hassasiyeti (MSL)

1 (Unlimited)

Özellikler

Board Guide

Gender

Female

Seri

PCN21

Filter Feature

NO

Din Conformance

NO

Length Termination

0.126 inch

Sıra Sayısı

5

Contact Style

SQ PIN-SKT

ECCN Kodu

EAR99

Lead Pitch

2mm

Plating Thickness

31μin

Contact Finish

Gold

Yayın Yılı

2002

Terminal

Press-Fit

Polarization Key

POLARIZED HOUSING
