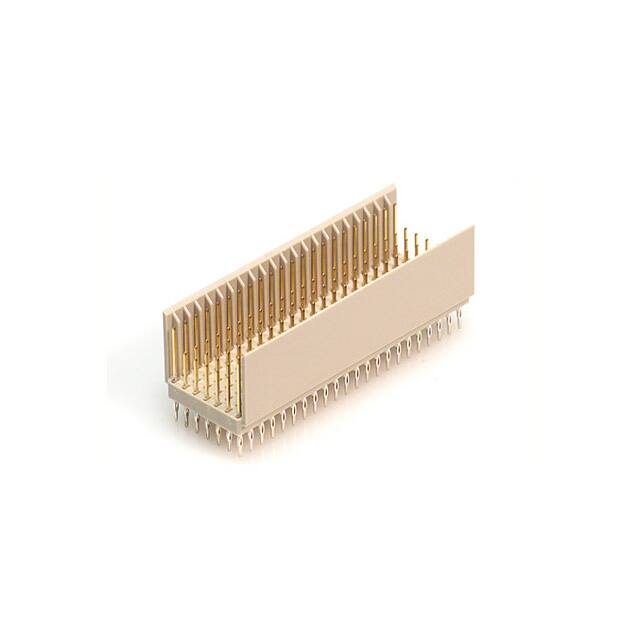

PCN21B-110PB-2PF-G

Teknik Özellikler

Montaj Tipi

Through Hole

Option

GENERAL PURPOSE

REACH Uyumluluk Kodu

unknown

Ul Flammability Code

94V-0

Reference Standard

UL

Insulator Color

GRAY

Number Of Contacts

110

Pozisyon Sayısı

154 (110 + 44 Ground)

Connector Usage

Backplane

JESD-609 Kodu

e3

Contact Materials

Bronze

Pcb Contact Row Spacing

2.0066 mm

Montaj

Through Hole

Voltage Rated Ac

300V

Fabrika Tedarik Süresi

8 Weeks

Bodyshell Style

RECEPTACLE

Number Of Pcb Rows

7

Body Breadth

0.606 inch

Mixed Contacts

NO

Gender

Male

Özellikler

Ground Plate

Seri

PCN21

Dielectric Withstanding Voltage

750VAC V

Nem Hassasiyeti (MSL)

1 (Unlimited)

RoHS Durumu

RoHS Compliant

Length Termination

0.146 inch

Din Conformance

NO

Filter Feature

NO

Housing Color

Grey

Insulation Resistance

10000000000Ohm

Number Of Positions Loaded

All

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Ambalaj

Bulk

Mating Contact Row Spacing

0.079 inch

Reliability

COMMERCIAL

Pitch

0.079 2.00mm

Contact Resistance

30mOhm

Additional Feature

STANDARD: IEC 61076-4

Body Depth

0.53 inch

Connector Style

B 22
