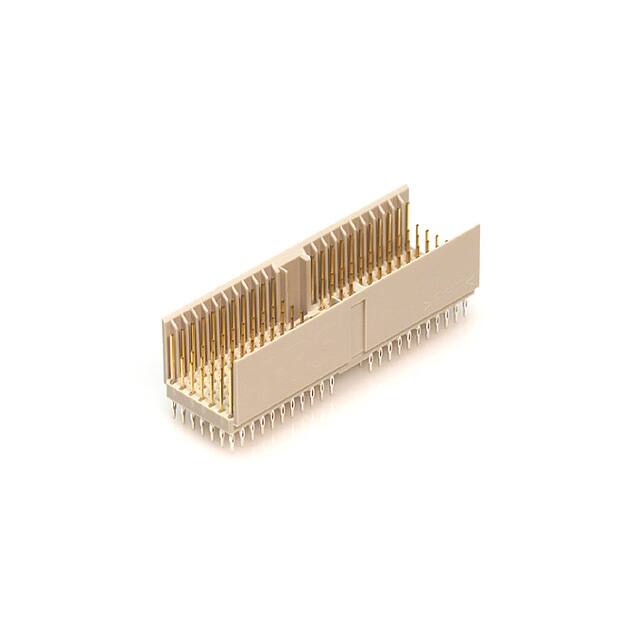

PCN21B-110PA-2PF-G

Teknik Özellikler

Contact Finish Thickness

31.5μin 0.80μm

Mil Conformance

NO

Iec Conformance

YES

Parça Durumu

Last Time Buy

Çalışma Sıcaklığı

-55°C~125°C

Body Length Or Diameter

1.982 inch

Kurşunsuz Kodu

yes

Durability

500 Cycles

Pcb Contact Pattern

RECTANGULAR

Housing Material

PBT

Connector Type

Header, Male Pins

Kurşunsuz

Lead Free

Contact Finish

Gold

Plating Thickness

31μin

Lead Pitch

2mm

Terminal

Press-Fit

Polarization Key

POLARIZED HOUSING

Yayın Yılı

2002

Sıra Sayısı

5 + 2

Contact Style

SQ PIN-SKT

Akım Değeri

1.5A

Contact Pattern

RECTANGULAR

Number Of Conductors

ONE

Body Depth

0.53 inch

Connector Style

A 22

Contact Resistance

30mOhm

Additional Feature

STANDARD: IEC 61076-4

Reliability

COMMERCIAL

Pitch

0.079 2.00mm

Ambalaj

Tray

Mating Contact Row Spacing

0.079 inch

Number Of Positions Loaded

All

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Housing Color

Grey

Insulation Resistance

10000000000Ohm

Filter Feature

NO

Din Conformance

NO

Length Termination

0.146 inch

Nem Hassasiyeti (MSL)

1 (Unlimited)

RoHS Durumu

RoHS Compliant
