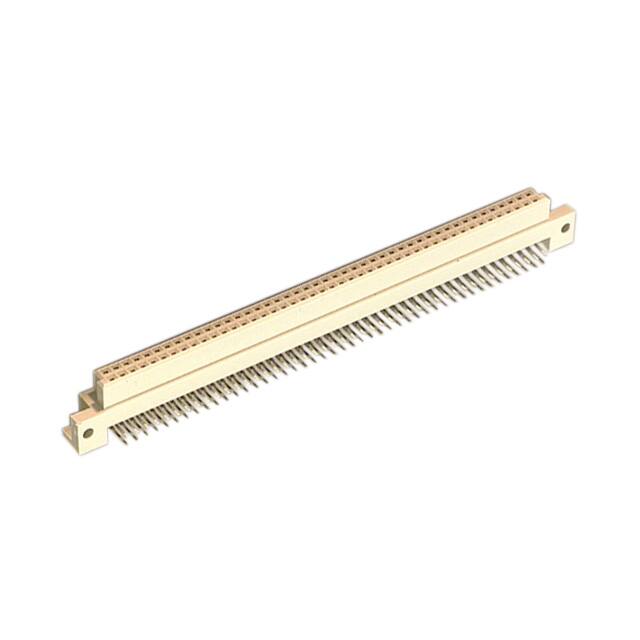

PCN13-90S-2.54DSA(71)

Teknik Özellikler

Ambalaj

Tray

Total Number Of Contacts

90

Mating Contact Row Spacing

0.1 inch

Housing Color

Grey

Insulation Resistance

1000000000000Ohm

Number Of Positions Loaded

All

Rated Current Signal

2A

Dielectric Withstanding Voltage

1000VAC V

Seri

PCN13

RoHS Durumu

RoHS Compliant

Nem Hassasiyeti (MSL)

1 (Unlimited)

Max Current Rating

2A

Fabrika Tedarik Süresi

10 Weeks

Voltage Rated Ac

300V

Montaj

Through Hole

Number Of Pcb Rows

2

Body Breadth

0.319 inch

Orientation

Straight

Pozisyon Sayısı

90

REACH Uyumluluk Kodu

unknown

Style

B

Reference Standard

UL

Montaj Tipi

Through Hole

Yükseklik

11.5mm

Flammability Rating

UL94 V-0

Durability

500 Cycles

Pcb Contact Pattern

RECTANGULAR

Kurşunsuz Kodu

yes

Parça Durumu

Active

Çalışma Sıcaklığı

-55°C~85°C

Kurşunsuz

Lead Free

Connector Type

Receptacle, Female Sockets

Housing Material

Plastic

Material Flammability Rating

UL94 V-0

Terminal

Solder

Polarization Key

POLARIZED HOUSING

Plating Thickness

3.93μin

Max Voltage Rating Ac

300V

Contact Finish

Gold

ECCN Kodu

EAR99
