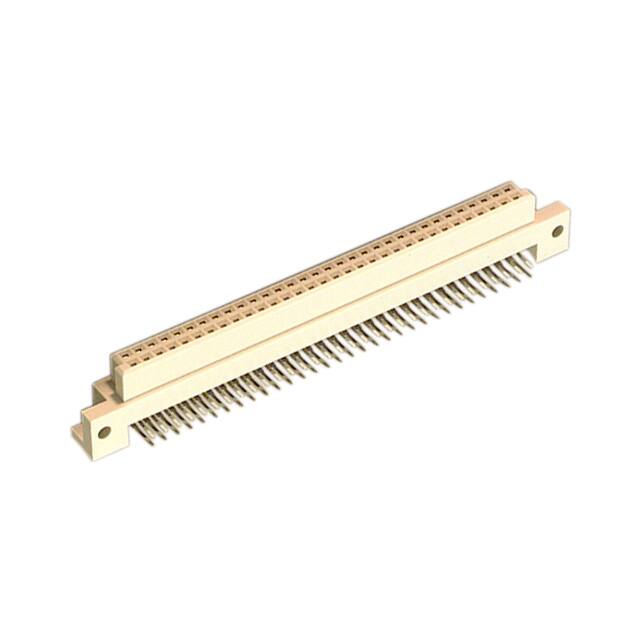

PCN13-64S-2.54DSA

Teknik Özellikler

Contact Materials

NOT SPECIFIED

Sıra Sayısı

2

Pozisyon Sayısı

64

Mixed Contacts

NO

Number Of Pcb Rows

2

Contact Finish

Gold

Montaj

Through Hole

Polarization Key

ENDS

Material Flammability Rating

UL94 V-0

Terminal

Solder

Uzunluk

95mm

Option

GENERAL PURPOSE

Genişlik

8.1mm

Montaj Tipi

Through Hole

Pitch

0.100 2.54mm

Reliability

COMMERCIAL

Akım Değeri

2A

Insulator Color

GRAY

Reference Standard

UL

Style

B

Ul Flammability Code

94V-0

REACH Uyumluluk Kodu

unknown

Material Insulation

Polybutylene Terephthalate (PBT)

Body Depth

0.453 inch

Mil Conformance

NO

Yükseklik

11.5mm

Number Of Positions Loaded

All

Rated Current Signal

2A

Flammability Rating

UL94 V-0

Iec Conformance

YES

Housing Color

Grey

Ambalaj

Tray

Total Number Of Contacts

64

Level Class

1

RoHS Durumu

Non-RoHS Compliant

Connector Type

Receptacle, Female Sockets

Nem Hassasiyeti (MSL)

1 (Unlimited)

Housing Material

Plastic

Kurşunsuz

Contains Lead

Seri

PCN13
