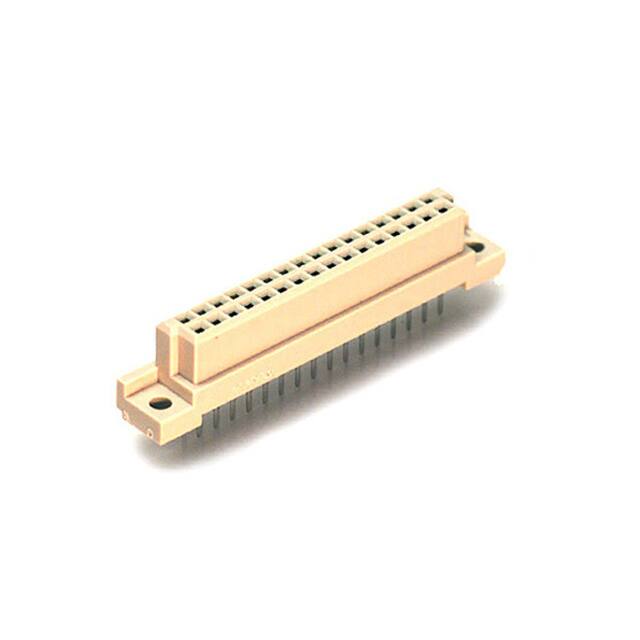

PCN13-32S-2.54DS

Teknik Özellikler

Option

GENERAL PURPOSE

Uzunluk

58.3mm

Reliability

COMMERCIAL

Pitch

0.100 2.54mm

Montaj Tipi

Through Hole, Right Angle

Genişlik

15.2mm

Ul Flammability Code

94V-0

Reference Standard

UL

Style

B

Insulator Color

GRAY

Akım Değeri

2A

Body Depth

0.598 inch

Material Insulation

Polybutylene Terephthalate (PBT)

REACH Uyumluluk Kodu

unknown

Sıra Sayısı

2

Contact Materials

NOT SPECIFIED

Pozisyon Sayısı

32

Contact Finish

Gold

Number Of Pcb Rows

2

Mixed Contacts

NO

Terminal

Solder

Material Flammability Rating

UL94 V-0

Polarization Key

ENDS

Montaj

Through Hole

Housing Material

Plastic

Nem Hassasiyeti (MSL)

1 (Unlimited)

Connector Type

Receptacle, Female Sockets

RoHS Durumu

Non-RoHS Compliant

Seri

PCN13

Kurşunsuz

Contains Lead

Çalışma Sıcaklığı

-55°C~85°C

Parça Durumu

Obsolete

Din Conformance

YES

Filter Feature

NO

Name Of Rows Loaded

A,B

Durability

500 Cycles

Pcb Contact Pattern

RECTANGULAR

Flammability Rating

UL94 V-0

Rated Current Signal

2A

Number Of Positions Loaded

All
