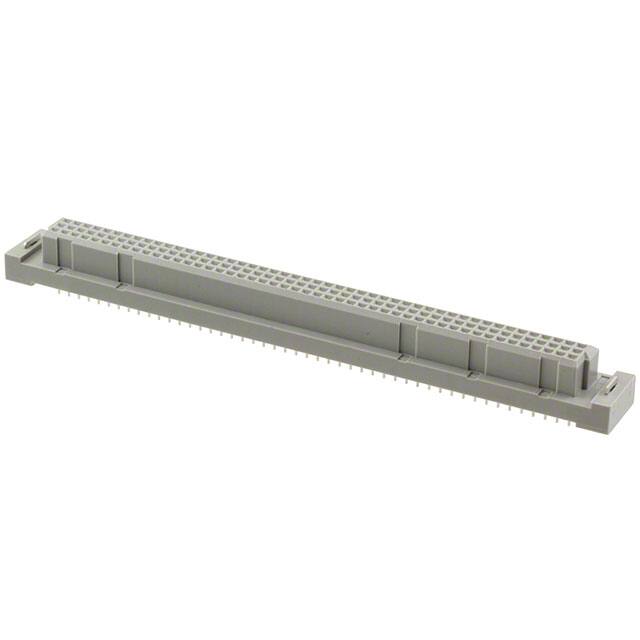

PCN10MA-144S-2.54DSA(72)

Teknik Özellikler

ECCN Kodu

EAR99

HTS Kodu

8536.69.40.40

Montaj Tipi

Through Hole

Body Breadth

0.571 inch

Flammability Rating

UL94 V-0

Parça Durumu

Active

Seri

PCN10

Pozisyon Sayısı

144

Number Of Pcb Rows

3

JESD-609 Kodu

e3

Sıra Sayısı

2

Mating Contact Row Spacing

0.1 inch

Contact Finish

Gold

Plating Thickness

8μin

Nominal Gerilim

300V

Length Termination

0.134 inch

Total Number Of Contacts

144

Nem Hassasiyeti (MSL)

1 (Unlimited)

Polarization Key

POLARIZED HOUSING

Contact Style

SQ PIN-SKT

Body Length Or Diameter

5.51 inch

Housing Material

PBT

Material Flammability Rating

UL94 V-0

Connector Type

Receptacle, Female Sockets

Akım Değeri

2A

Montaj

Through Hole

Contact Finish Thickness

8.00μin 0.203μm

Name Of Rows Loaded

A,B,C

Insulator Color

GRAY

REACH Uyumluluk Kodu

unknown

Din Conformance

YES

Pitch

0.100 2.54mm

Pcb Contact Pattern

RECTANGULAR

Reliability

COMMERCIAL

Reference Standard

UL

Terminal

Solder

Ambalaj

Tray

Insulation Resistance

1000000000000Ohm

Number Of Positions Loaded

All

Durability

500 Cycles
