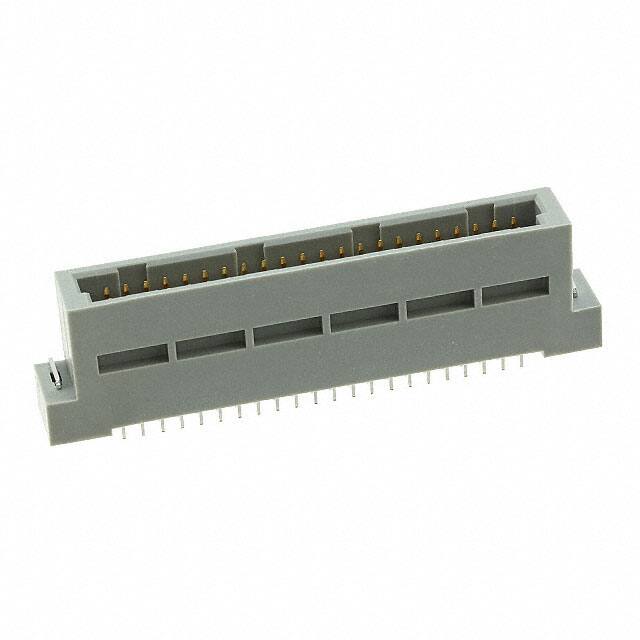

PCN10HB-44P-2.54DSA(72)

Teknik Özellikler

Seri

PCN10

Kurşunsuz

Lead Free

Parça Durumu

Active

Flammability Rating

UL94 V-0

Body Breadth

0.378 inch

Montaj Tipi

Through Hole

Pozisyon Sayısı

44

Sıra Sayısı

2

Contact Materials

Brass

Number Of Pcb Rows

2

Plating Thickness

8μin

Contact Finish

Gold

Mating Contact Row Spacing

0.1 inch

Length Termination

0.118 inch

Nominal Gerilim

300V

Polarization Key

POLARIZED HOUSING

Nem Hassasiyeti (MSL)

1 (Unlimited)

Total Number Of Contacts

44

Material Flammability Rating

UL94 V-0

Housing Material

PBT

Contact Gender

Male

Name Of Rows Loaded

A,B

Contact Finish Thickness

8.00μin 0.203μm

Montaj

Through Hole

Akım Değeri

2A

Body Depth

1.173 inch

Connector Type

Header, Male Pins

Din Conformance

YES

Insulator Color

GRAY

REACH Uyumluluk Kodu

unknown

Reference Standard

UL

Reliability

COMMERCIAL

Pcb Contact Pattern

RECTANGULAR

Pitch

0.100 2.54mm

Insulation Resistance

1000000000000Ohm

Ambalaj

Tray

Terminal

Solder

Style

B

Rated Current Signal

2A

RoHS Durumu

RoHS Compliant
