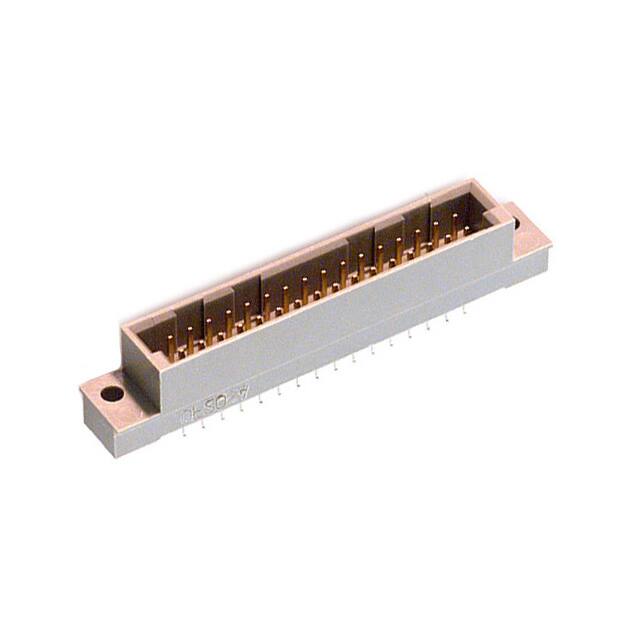

PCN10HA-32P-2.54DSA(72)

Teknik Özellikler

Style

B

Durability

500 Cycles

Number Of Positions Loaded

All

Material Insulation

Polybutylene Terephthalate (PBT)

Dielectric Withstanding Voltage

1000VAC V

Rated Current Signal

2A

Max Voltage Rating Ac

300V

Connector Type

Header, Male Pins

Name Of Rows Loaded

A,B

Montaj

Through Hole

Contact Finish Thickness

8.00μin 0.203μm

Housing Color

Grey

Reliability

COMMERCIAL

Pitch

0.100 2.54mm

REACH Uyumluluk Kodu

unknown

Insulator Color

GRAY

Din Conformance

YES

Mating Contact Row Spacing

0.1 inch

Contact Finish

Gold

Fabrika Tedarik Süresi

10 Weeks

Plating Thickness

8μin

Nem Hassasiyeti (MSL)

1 (Unlimited)

Total Number Of Contacts

32

Orientation

Straight

Body Breadth

0.378 inch

Parça Durumu

Active

Seri

PCN10

HTS Kodu

8536.69.40.40

Contact Materials

Brass

Pozisyon Sayısı

32

Depth

9.6mm

Terminal

Solder

Insulation Resistance

1000000000000Ohm

Ambalaj

Tray

Çalışma Sıcaklığı

-55°C~85°C

Max Current Rating

2A

Gender

Male

RoHS Durumu

RoHS Compliant

Akım Değeri

2A

Material Flammability Rating

UL94 V-0
