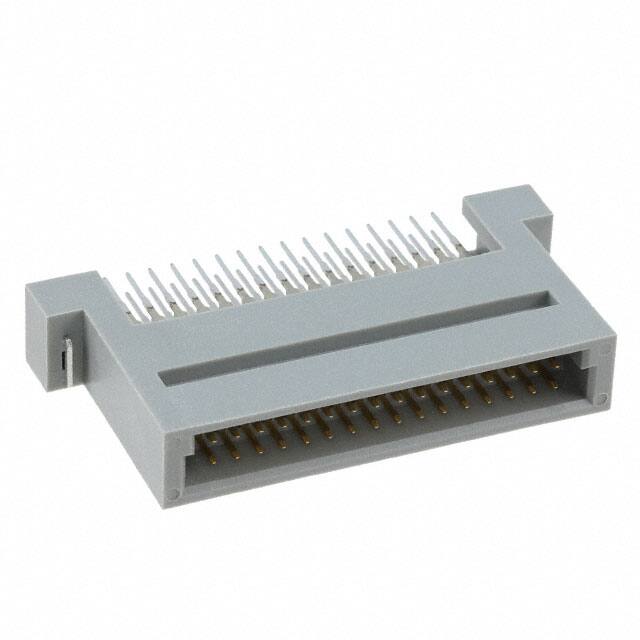

PCN10H-32P-2.54DSA(72)

Teknik Özellikler

Contact Finish

Gold

Plating Thickness

8μin

Mating Contact Row Spacing

0.1 inch

Length Termination

0.118 inch

Bodyshell Style

PLUG

Polarization Key

POLARIZED HOUSING

Total Number Of Contacts

32

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Style

SQ PIN-SKT

HTS Kodu

8536.69.40.40

ECCN Kodu

EAR99

Seri

PCN10

Body Breadth

0.378 inch

Flammability Rating

UL94 V-0

Parça Durumu

Active

Montaj Tipi

Through Hole

Pozisyon Sayısı

32

Sıra Sayısı

2

Contact Materials

BRASS

Number Of Pcb Rows

2

Insulation Resistance

1000000000000Ohm

Ambalaj

Tray

Terminal

Solder

Rated Current Signal

2A

Dielectric Withstanding Voltage

1000VAC V

RoHS Durumu

RoHS Compliant

Radyasyon Dayanımı

No

Number Of Positions Loaded

All

Durability

500 Cycles

Material Insulation

Polybutylene Terephthalate (PBT)

Çalışma Sıcaklığı

-55°C~85°C

Material Flammability Rating

UL94 V-0

Name Of Rows Loaded

A,B

Montaj

Through Hole

Contact Finish Thickness

8.00μin 0.203μm

Body Depth

1.173 inch

Akım Değeri

2A

Connector Type

Header, Male Pins

Din Conformance

YES

Insulator Color

GRAY
