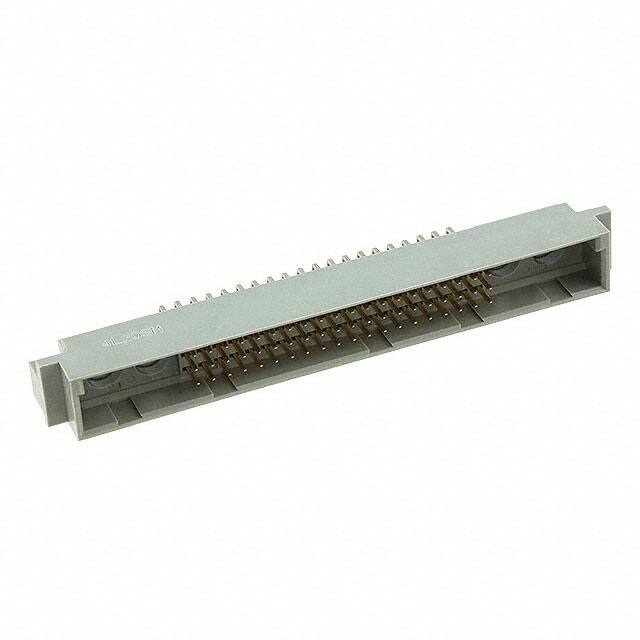

PCN10F-60P-2.54DS(72)

Teknik Özellikler

Contact Style

HYBRID

Ul Flammability Code

94V-0

Polarization Key

POLARIZED HOUSING

Bodyshell Style

PLUG

Filter Feature

NO

Number Of Pcb Rows

3

JESD-609 Kodu

e4

Sıra Sayısı

3

Pcb Contact Row Spacing

2.54 mm

Contact Resistance

20mOhm

Montaj Tipi

Through Hole, Right Angle

Flammability Rating

UL94 V-0

Iec Conformance

NO

ECCN Kodu

EAR99

Çalışma Sıcaklığı

-55°C~85°C

RoHS Durumu

RoHS Compliant

Additional Feature

STANDARD: DIN 41612

Terminal

Solder

Ambalaj

Tray

Insulation Resistance

1000000000000Ohm

Pcb Contact Pattern

RECTANGULAR

Reference Standard

UL

Option

GENERAL PURPOSE

Akım Değeri

2A

Material Flammability Rating

UL94 V-0

Mixed Contacts

YES

Nem Hassasiyeti (MSL)

1 (Unlimited)

Total Number Of Contacts

60

Length Termination

0.114 inch

Mating Contact Row Spacing

0.1 inch

Contact Finish

Gold

Fabrika Tedarik Süresi

10 Weeks

Plating Thickness

8μin

Contact Materials

BRASS

Pozisyon Sayısı

64 (60 + 4 Coax)

Parça Durumu

Active

Seri

PCN10

Kurşunsuz Kodu

no

Material Insulation

Polybutylene Terephthalate (PBT)

Number Of Positions Loaded

60
