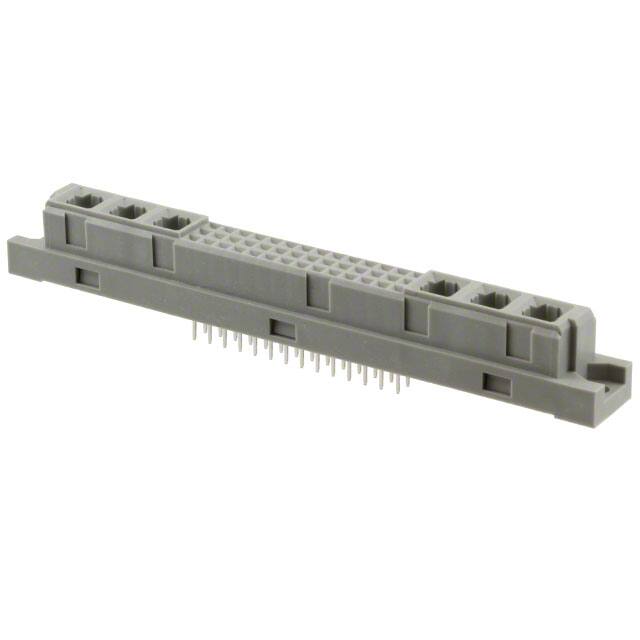

PCN10F-42S-2.54DSA(72)

Teknik Özellikler

Din Conformance

YES

Insulator Color

GRAY

REACH Uyumluluk Kodu

unknown

Reliability

COMMERCIAL

Pcb Contact Pattern

RECTANGULAR

Pitch

0.100 2.54mm

Reference Standard

UL

Material Flammability Rating

UL94 V-0

Montaj

Through Hole

Connector Type

Receptacle, Female Sockets

Option

GENERAL PURPOSE

Akım Değeri

2A

Body Depth

0.488 inch

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Rated Current Signal

2A

RoHS Durumu

RoHS Compliant

Dielectric Withstanding Voltage

1000VAC V

Material Insulation

Polybutylene Terephthalate (PBT)

Durability

500 Cycles

Number Of Positions Loaded

All

Çalışma Sıcaklığı

-30°C~85°C

Ambalaj

Tray

Insulation Resistance

1000000000000Ohm

Terminal

Solder

Mil Conformance

NO

Pozisyon Sayısı

42

JESD-609 Kodu

e3

Sıra Sayısı

2

Number Of Pcb Rows

3

Seri

PCN10

Iec Conformance

NO

Montaj Tipi

Through Hole

Parça Durumu

Active

Flammability Rating

UL94 V-0

Body Breadth

0.413 inch

Polarization Key

POLARIZED HOUSING

Nem Hassasiyeti (MSL)

1 (Unlimited)

Total Number Of Contacts

42

Ul Flammability Code

94V-0

Mixed Contacts

YES
