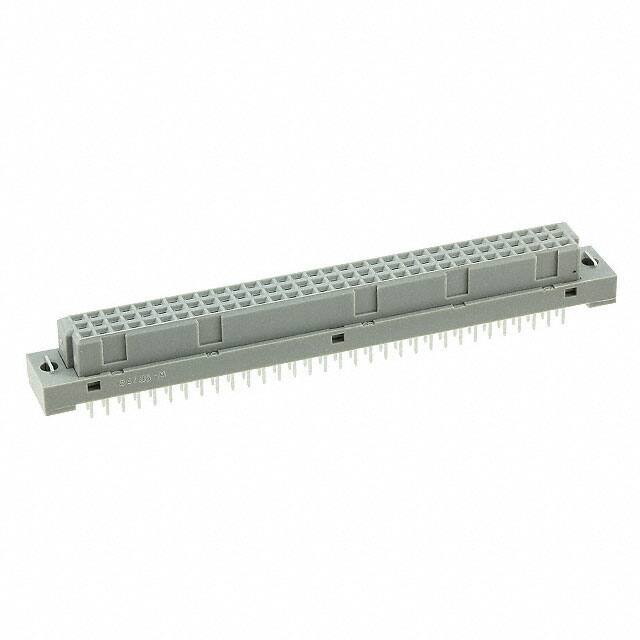

PCN10EA-96S-2.54DSA(72)

Teknik Özellikler

Pozisyon Sayısı

96

Pcb Contact Row Spacing

2.54 mm

Sıra Sayısı

3

Contact Materials

Copper

Number Of Pcb Rows

3

Uzunluk

95mm

Seri

PCN10

Flammability Rating

UL94 V-0

Kurşunsuz

Lead Free

Parça Durumu

Active

Contact Resistance

20mOhm

Montaj Tipi

Through Hole

Orientation

Straight

Polarization Key

POLARIZED HOUSING

Nem Hassasiyeti (MSL)

1 (Unlimited)

Total Number Of Contacts

96

Plating Thickness

8μin

Contact Finish

Gold

Nominal Gerilim

300V

Din Conformance

YES

Insulator Color

GRAY

REACH Uyumluluk Kodu

unknown

Reference Standard

UL

Pitch

0.100 2.54mm

Material Flammability Rating

UL94 V-0

Housing Color

Grey

Housing Material

PBT

Montaj

Through Hole

Akım Değeri

2A

Connector Type

Receptacle, Female Sockets

Rated Current Signal

2A

RoHS Durumu

RoHS Compliant

Max Voltage Rating Ac

300V

Material Insulation

Polybutylene Terephthalate (PBT)

Number Of Positions Loaded

All

Max Current Rating

2A

Çalışma Sıcaklığı

-55°C~85°C

Insulation Resistance

1 TΩ

Ambalaj

Tray

Terminal

Solder
