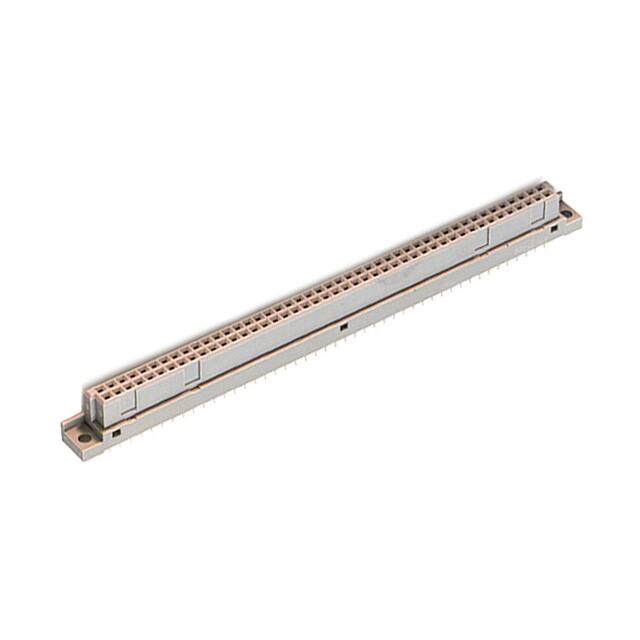

PCN10C-90S-2.54DSA

Teknik Özellikler

Number Of Pcb Rows

2

Sıra Sayısı

2

JESD-609 Kodu

e4

ECCN Kodu

EAR99

Kurşunsuz

Contains Lead

Flammability Rating

UL94 V-0

Montaj Tipi

Through Hole

Iec Conformance

YES

Polarization Key

ENDS

Ul Flammability Code

94V-0

Filter Feature

NO

Reference Standard

UL

Pcb Contact Pattern

RECTANGULAR

Housing Material

Plastic

Material Flammability Rating

UL94 V-0

Akım Değeri

2A

Option

GENERAL PURPOSE

RoHS Durumu

Non-RoHS Compliant

Çalışma Sıcaklığı

-55°C~85°C

Terminal

Solder

Insulation Resistance

1000000000000Ohm

Ambalaj

Tray

Pozisyon Sayısı

90

HTS Kodu

8536.69.40.40

Parça Durumu

Obsolete

Body Breadth

0.319 inch

Seri

PCN10

Nem Hassasiyeti (MSL)

1 (Unlimited)

Total Number Of Contacts

90

Body Length Or Diameter

5.04 inch

Mixed Contacts

NO

Mating Contact Row Spacing

0.1 inch

Contact Finish

Gold

Length Termination

0.154 inch

REACH Uyumluluk Kodu

unknown

Insulator Color

GRAY

Din Conformance

YES

Reliability

COMMERCIAL

Pitch

0.100 2.54mm

Housing Color

Grey
