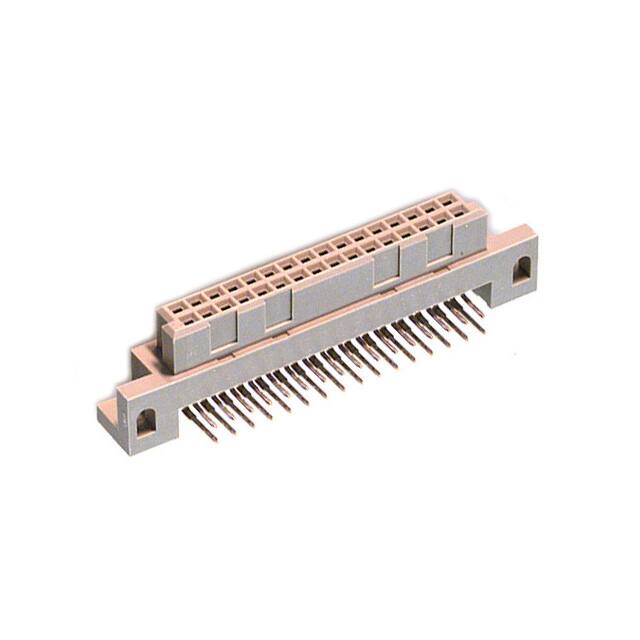

PCN10C-32S-2.54DSA(72)

Teknik Özellikler

RoHS Durumu

RoHS Compliant

Max Current Rating

2A

Çalışma Sıcaklığı

-55°C~85°C

Ambalaj

Tray

Insulation Resistance

1000000000000Ohm

Terminal

Solder

Depth

8.1mm

Pcb Contact Pattern

RECTANGULAR

Reference Standard

UL

Material Flammability Rating

UL94 V-0

Housing Material

PBT

Akım Değeri

2A

Polarization Key

POLARIZED HOUSING

Sıra Sayısı

2

Number Of Pcb Rows

3

Uzunluk

54.36mm

ECCN Kodu

EAR99

Contact Resistance

20mOhm

Montaj Tipi

Through Hole

Kurşunsuz

Lead Free

Flammability Rating

UL94 V-0

Max Voltage Rating Ac

300V

Dielectric Withstanding Voltage

1000VAC V

Rated Current Signal

2A

Number Of Positions Loaded

All

Durability

500 Cycles

Material Insulation

Polybutylene Terephthalate (PBT)

Style

B

Din Conformance

YES

REACH Uyumluluk Kodu

unknown

Insulator Color

GRAY

Reliability

COMMERCIAL

Pitch

0.100 2.54mm

Housing Color

Grey

Contact Finish Thickness

8.00μin 0.203μm

Montaj

Through Hole

Name Of Rows Loaded

A,B

Connector Type

Receptacle, Female Sockets

Orientation

Straight

Total Number Of Contacts

32
